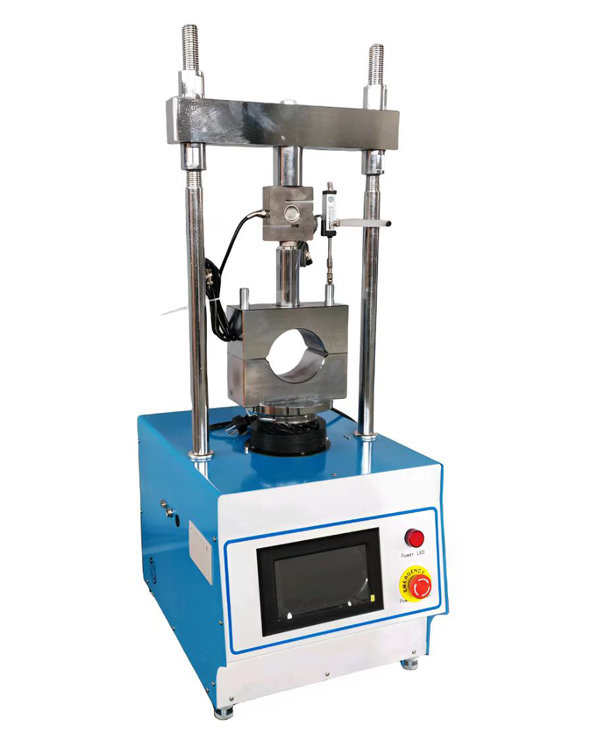

Marshall Stability Test Machine 50KN

Marshall Stability Test Machine 50KN

Wholesale Marshall digital machine Marshall machine 50kN Marshall tability Test Machine Marshall Testing Machine With Load Ring

The vertical rise speed of the test apparatus tray:

50±5mm/min

Maximum movement distance of the test apparatus pallet:

70mm

Working range of force value:

0 – 50.00kN

Working range of displacement:

0 – 10.00mm

Measuring accuracy of force measuring device:

±0.1kN

Displacement measuring device measuring accuracy:

0.01mm

Working voltage:

220V 50Hz AC

Specification of motor:

220V, 0.37KW, 1440rpm, three-phase operation

Maximum rated load:

50KN

Using conditions:

Ambient temperature 0℃-60℃ Relative temperature <85%

Packing：

Marshall Stability Test machine which is used to determine the stability and flow value of asphalt mixture, which is compressed under certain temperature and speed.
