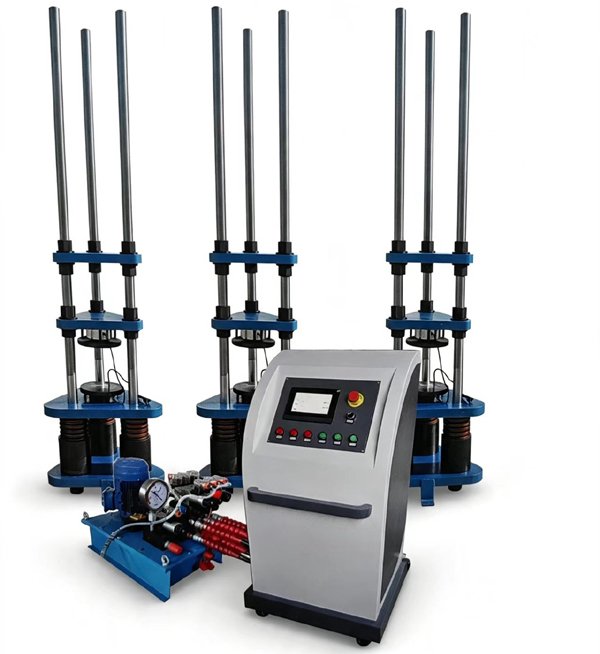

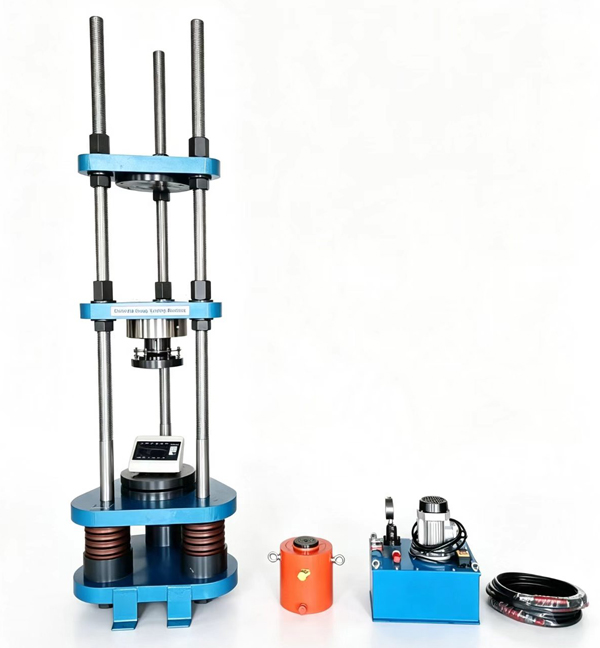

Concrete Creep Tester

Short Description:

Product Detail

Product Tags

Application: Used to measure the deformation of concrete over time under a given stress level with constant load maintained.

Implemented Standards:

- Standard Test Method for Long‑Term Performance and Durability of Ordinary Concrete, GB/T50082‑2009
- Water Conservancy Industry Standard and National Industry Standard, SL352‑2006

Technical Specifications

1. Maximum test force: 500 kN, 1000 kN (customizable)
2. Measuring range: 0‑500 kN, 0‑1000 kN (customizable)
3. The pressure sensor is a spoke‑type pressure sensor, featuring good eccentric‑load resistance, high overload capacity and high sensitivity.
4. Relative pressure error: Less than ±1%
5. Displacement sensor travel: 10 mm
6. Displacement measurement error: ±1 μm
7. Spring height: 300 mm
8. Compression travel: 35 mm
9. Lead screw diameter: 60 mm
10. Bearing plate thickness: 50 mm
11. Specimen dimensions: 100×100×400 mm and 150×150×550 mm
12. Frame dimension: 660×660×2600 mm

Characteristics

1. Independent intellectual property right obtained. Patent No. ZL 2017 2 0492505.3: A Safety‑Type Concrete Creep Tester for Concrete Testing.
2. 7‑inch touch‑screen control system, which can display and record the load, compression deformation of specimens as well as ambient temperature and humidity in real time to save labor costs.
3. Optional safety guard for creep frames to prevent safety hazards caused by accidental specimen fracture.
4. Test data is stored in real‑time and will not be lost upon sudden power failure. Tests can resume after power‑on.
5. Disc springs and special spring assemblies are adopted to resist eccentric load. Uniform force distribution on three support frames, with high spring rigidity, long fatigue life and low permanent deformation.
6. Optimized loading frame structure, convenient for specimen positioning, loading unit installation, sensor mounting and leveling operation.
7. Electric hydraulic pump matched with pressurizing oil cylinder, enabling convenient loading and easy pressure regulation.
8. Foot mounting fixtures are equipped at the bottom of loading frames for safe and stable operation.
9. 50 mm‑thick bearing plate is made of high‑strength steel with high rigidity and stable performance.
10. The machine is delivered as an assembled unit. It can be put into service after hoisting and fixing on site.
11. Complete accessories supplied. Tests can be carried out immediately after arrival.
