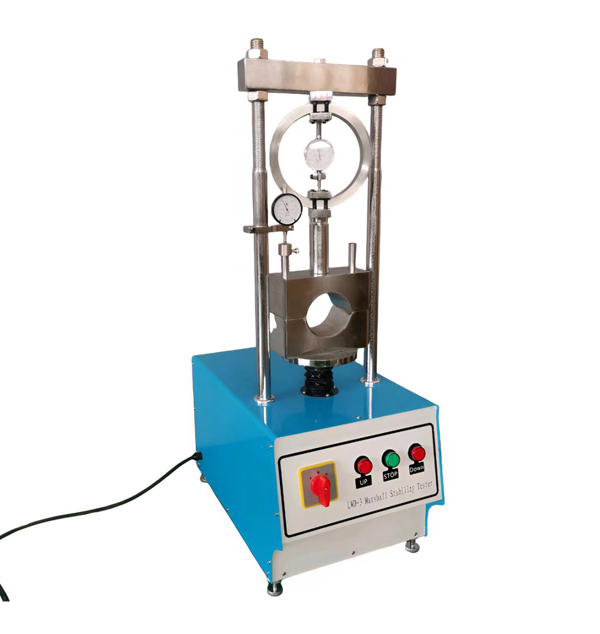

Marshall Press Testing Machine

Marshall Press Testing Machine is used to determine the load and flow values of bituminous mixtures.
The Marshall is composed of a robust and compact two-column frame with an adjustable upper cross beam driven by an electro-mechanical ram with a maximum capacity of 50 KN and a data acquisition and processing system.
The Marshall Stability Machine can be hand operated by a lateral hand wheel for calibration purposes. The mechanical jack raises the lower cross beam at a constant speed of 50.8 mm/min.
The limit switches are provided for both, bottom and top limit of travel.
The Automatic measuring system consists of a 50KN capacity strain gauge load cell that is fitted to the upper cross beam to read stability values and 25 mm x 0.001 mm displacement transducer fitted to Break Head.
The Manual measuring system consists of a 50 KN capacity load ring and dial gauge graduated 0.01 mm with 25 mm travel.

The vertical rise speed of the test apparatus tray:

50±5mm/min

Maximum movement distance of the test apparatus pallet:

70mm

Working range of force value:

0 – 50.00kN

Working range of displacement:

0 – 10.00mm

Measuring accuracy of force measuring device:

±0.1kN

Displacement measuring device measuring accuracy:

0.01mm

Working voltage:

220V 50Hz AC

Specification of motor:

220V, 0.37KW, 1440rpm, three-phase operation

Maximum rated load:

50KN

Using conditions:

Ambient temperature 0℃-60℃ Relative temperature <85%

Marshall stability press apparatus are used to evaluate the resistance of asphalt mixtures to deformation under load, determining their stability and strength.This test is crucial in road construction for assessing the quality and performance of asphalt mixes, helping engineers predict how well the asphalt will withstand traffic and environmental factors.
