Laboratory Concrete Mixer Twin Shaft

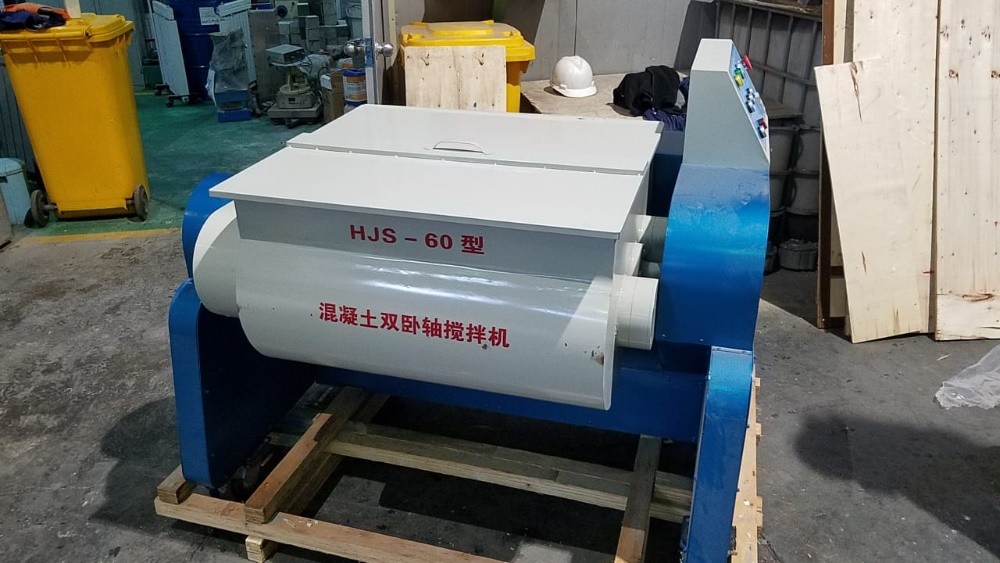

HJS-60 double-horizontal shafts Concrete Mixer (Twin Shaft Mixer)

The tectonic type of this machine has been included into national compulsory industry

<Concrete Test Mixer Standards> (JG244-2009).The performance of this product meets or even exceeds the standards. Due to its scientific design, strict quality control and unique tectonic type, this mixer of double-horizontal shafts features efficient mixing ,well-distributed mixture, and cleaner discharging and it is suitable for Institutes of scientific researches, mixing plant, detection units, as well as laboratory of concrete.

It is also suitable for mixing other raw materials with particles below 40mm.

Technical Parameters:

1. Tectonic Type: Double-horizontal shafts

2. Nominal Capacity: 60L

3. Mixing Motor Power: 3.0KW

4. Discharging Motor Power: 0.75KW

5. Material of work chamber: high quality steel tube

6. Mixing Blade: 40 Manganese Steel (casting)

7. Distance between Blade and inner chamber: 1mm

8. Thickness of work chamber : 10mm

9. Thickness of Blade: 12mm

10. Overall Dimensions: 1100×900×1050mm

11. Weight: about 700kg

12. Packing: wooden case

---
