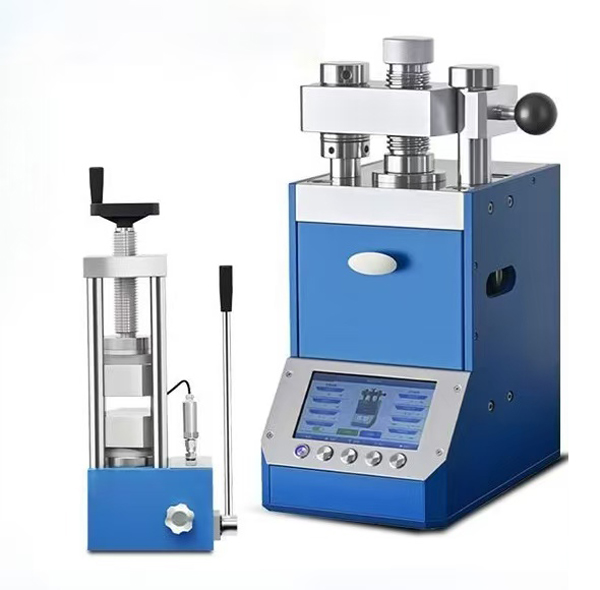

Lab Automatic Fluorescent Tablet Press Machine
Lab Automatic Fluorescent Tablet Press Machine
|
Instrument model |
LANMEI-40T |
|
Pressure Range |
0.1-40.0 tons |
|
Pressurization process |
program control |
|
Pressure conversion |
Program automatically |
|
Display |
7 inch LCD screen |
|
Metal buttons |
Service life 100,000 times |
|
Built in mold |
Boric acid/steel ring/plastic ring mold |
|
Sample size |
Sample size standard configuration 40mm |
|
Mold material |
440C |
|
Demoulding method |
automatic stripping |
|
External dimensions |
280X460X550mm(LxWXH) |
|
Equipment power supply |
1500W(220V/110V) |
|
Equipment weight |
150Kg |

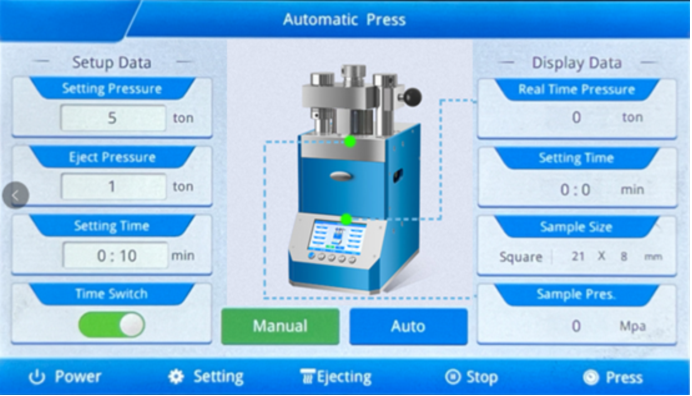

In the manual operation interface, settings such as “Set Pressure”, “Release Pressure”, “Set Time”, and “Sample Size” can be set. After setting, the settings will be automatically saved. When the timer switch is turned on and the set pressure is reached, it will automatically start timing. When the timer switch is turned off, the equipment will maintain pressure for a long time and will not release pressure without pressing the stop button.
Click start to run the automatic program, which will automatically stop after the program ends. In case of emergency, you can click stop to terminate the operation.

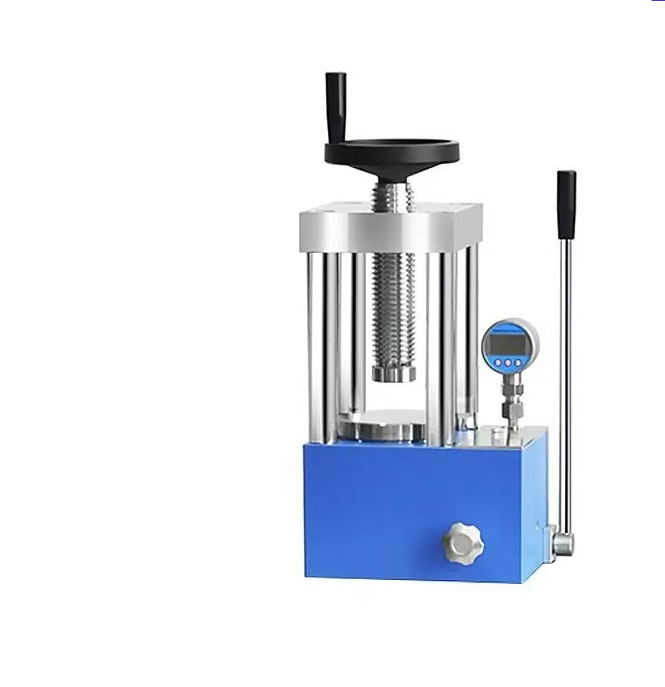

Manual model：
For infrared spectroscopy and fluorescence spectroscopy detection, the daily sample testing volume is large, and reliable hardware support is provided.
