Grinding Laboratory Sample Preparation Grinder Favorable Price Small Pulverizer Mill for Sale

Grinding Laboratory Sample Preparation Grinder Favorable Price Small Pulverizer Mill for Sale

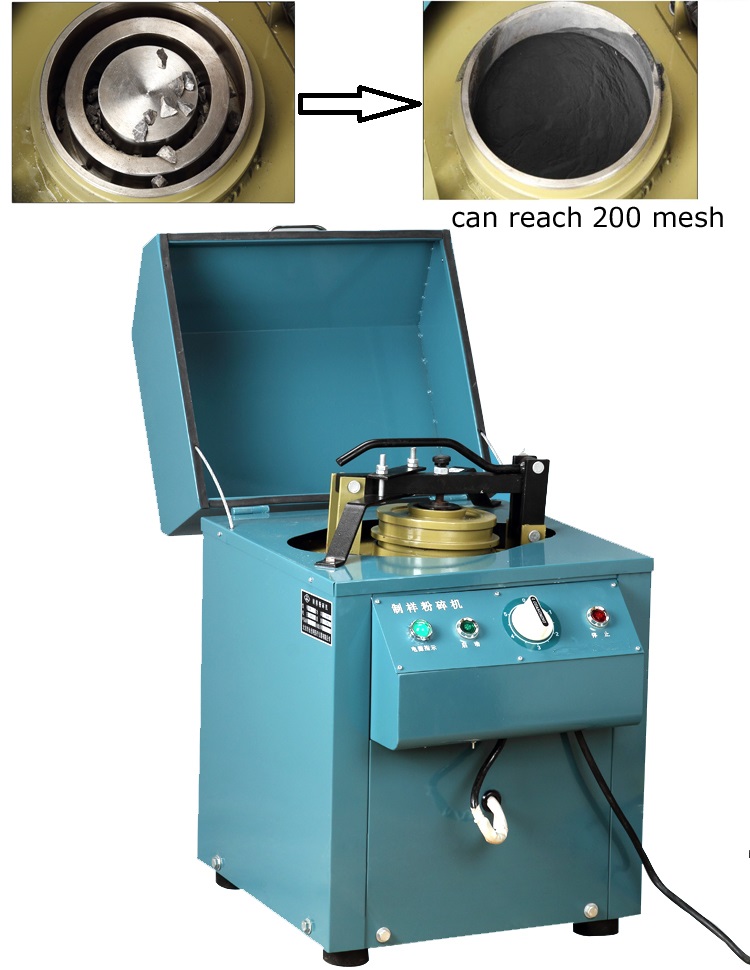

This machine is generally used for dry pulverization. When the humidity of the sample is large, it should be dried at about 105 °C to avoid too much water in the sample and reduce the smashing effect. Generally, the dryer the sample, the better the pulverization effect. There are no special requirements for the installation of this machine, as long as it is placed flat, it can be used for normal work.

The grinding part is mainly composed of a squat seat, a scorpion body, a pulverizing ring, a pulverizing hammer and the like. After the grinding part receives the power of the power part, the pulverizing ring and the pulverizing hammer hit and grind the material at a high frequency in the stern body under the action of the high-speed peripheral body movement, and the materials collide with each other, and the material is impacted and ground under the action of the material. The required micro-powder.

Main parameters

Model	FM-1	FM-2	FM-3
Mesh size of feed (mm)	<15
Mesh size of discharging(mesh)	80-200
Feed quantity(g)	<150	<300	<450
Power	380V 50HZ
Hardness of earthen bowl	HRC30-35
Impact value	J/cm²≥39.2
Wiring	Three-phase four-wire
Overall dimension(mm)	450*450*665
Motive power	Y90L-6
Weight of whole machine(kg)	120	124	130

1.Service:

a.If buyers visit our factory and check the machine, we will teach you how to install and use the

machine,

b.Without visiting, we will send you user manual and video to teach you to install and operate.

c.One year guarantee for whole machine.

d.24 hours technical support by email or calling

2.How to visit your company?

a.Fly to Beijing airport:By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can

pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),

then we can pick up you.

3.Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.

4.You are trade company or factory?

we have own factory.

5.What can you do if the machine broken?

The buyer send us the photos or videos. We will let our engineer to check and provide professional suggestions. If it needs change parts, we will send the new parts only collect cost fee.

---
