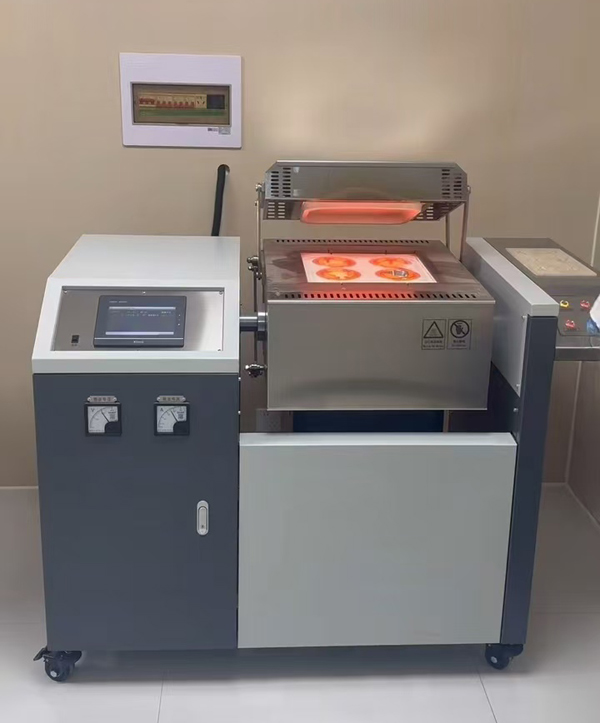

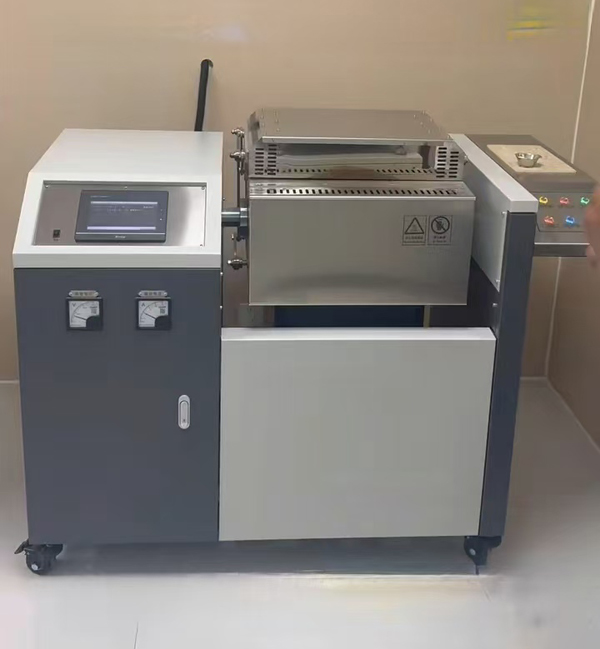

Automatic Fusion furnace(XRF sample fusion furnace)
Automatic Fusion furnace(XRF sample fusion furnace)
Fully Automatic Fusion Machine for XRF Spectrometry Analysis
as supporting equipment for sample fusion in XRF analysis tests. It holds independent intellectual property rights and is widely applied in iron & steel, metallurgy, chemical industry, geology, cement, ceramics, refractory materials and other industries.
It adopts touch screen control with user-friendly interface and simple operation, featuring high automation, fast heating, precise temperature control, energy saving and stable operation, and a wide working temperature range. Its maximum temperature can reach 1300°C. It delivers excellent fusion performance for refractory materials, good repeatability of fused glass beads, superior overall performance and favorable cost performance.
Dimensions (L×W×H): 1380mm × 685mm × 1150mm
Heating rate: Average 45℃/min
Rated temperature: 1300℃
Temperature control accuracy: ±1℃ during holding
Sample melting capacity: 4 positions
Furnace swing angle: 0~40° adjustable
Bracket rotation speed: 0-30r/min adjustable
Instrument weight: Total weight 380 Kg
Equipment power: 8kW
Rated voltage: Heating circuit 380V, Control circuit 220V
Rated current: 30A
Rated frequency: 50Hz
Fully Automatic Fusion Machine for XRF Spectrometry Analysis
High Working Reliability
Automatic Fusion furnace is an upgraded fully automatic fusion machine dedicated to XRF spectrometry analysis, developed based on older fusion machine models. Having undergone long-term market validation and optimization, its technical performance and reliability reach the leading level in the industry. It is a trusted supporting product for XRF users at home and abroad.Cement
Diverse Working Modes
This fusion machine adopts a four-station modular design, suitable for preparing medium-batch samples. It supports scheduled startup and intermediate release of release agents. The device can store up to 9 fusion working curves. It features the most flexible operation modes and widest application range among similar domestic equipment, making it a truly multi-functional automatic sample fusion instrument.
Excellent Fusion Performance
It adopts an advanced design where furnace oscillation and sample holder rotation run simultaneously. This ensures vortex motion of the molten sample, achieving optimal homogeneity and bubble removal within the shortest time.
Suitable for Fusion of Various Materials at Different Temperatures
The machine uses silicon carbon rod heating, S-type platinum-rhodium thermocouple for temperature measurement, liquid crystal touch screen, PLC and AI control. Equipped with a new intelligent human-machine operation system, it supports fault self-diagnosis. It is easy to operate, stable in operation and has a wide working temperature range. Default parameter settings simplify operation for higher safety and automation, delivering precise temperature control. It produces high-quality fused samples for various materials under different temperatures with good analytical repeatability, complying with multiple industry analytical standards.
Multiple Protection Functions
It is equipped with multiple protection functions including broken thermocouple detection and overtemperature protection. Hardware and software dual protection is triggered when overtemperature or over-travel occurs, ensuring long-term stable operation of the equipment.
