Petroleum Asphalt Wax Content Tester
Petroleum Asphalt Wax Content Tester

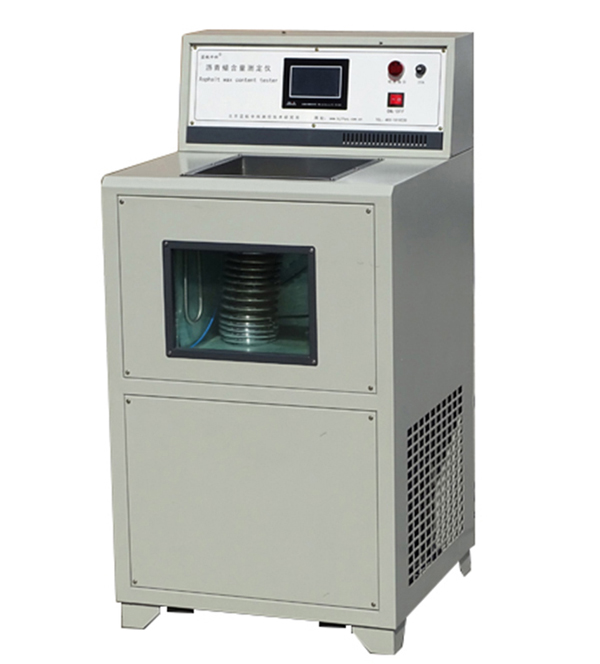

The WSY-010 type petroleum asphalt wax content tester is a dedicated instrument for the automatic constant-temperature refrigeration determination of wax content in petroleum asphalt, developed by our factory based on the standard analysis method for wax content in petroleum asphalt SH/T0425-92 issued by the China National Petroleum and Chemical Corporation. The temperature control part adopts a digital electronic temperature control instrument with high precision, fast response and clear reading. The refrigeration machine is a large-power imported 750WF22 compressor. The deep cold can reach minus 28℃. It solves the problem of difficult temperature control caused by the previous use of artificial dry ice cooling and Dewar flask insulation, and the difficulty in operation of analysis and testing, which only allowed one sample to be tested each time.
It complies with the requirements of the test method for wax content of asphalt (distillation method) as stipulated in the “Test Procedures for Asphalt and Asphalt Mixture in Highway Engineering” (JTG E20-2011), T0625-2011.
Technical Parameters
I. Main Technical Features
The wax content of the sample is determined by the method of cracking distillation and cold filtration. The instrument is desktop type, compact in structure, occupies a small space, and the suction filter distributor and hanging needle assembly are modularized, with good human-machine interaction.
2. It adopts an environmentally friendly compressor, which features fast cooling speed, high efficiency and low noise.
3. The heat film glass cavity observation window, in combination with high-lumen LED and lamp, features excellent heat preservation performance, no condensation or frost, and superior visibility.
4. High-precision digital temperature controller, accurate temperature control, easy to operate.
5. The design of the micro vacuum pump solves the problem of difficult matching of supporting equipment for the instrument.
This instrument can simultaneously conduct analysis tests on three samples at a time, featuring high testing efficiency.
1.Overall power: 1800W, including 750W for cooling and 1000W for heating.
2. Stirring motor speed: 1400 revolutions per minute
3. The temperature sensor adopts Pt100. The LED display difference is less than 0.5% ± 1 digit.
4. The refrigerant is F22, and the average cooling rate is 0.6 degrees per minute.
5. Operating conditions: Power supply voltage 220V, frequency 50Hz.
6. Ambient temperature: Room temperature Relative humidity: < 85%
7. Dimensions: 700 x 550 x 1200 mm
8. Net weight of the instrument: 90 kg
9.Temperature control range: 0 to -25℃
10.Temperature control accuracy: ±0.2℃
11. Weight: 110 kg
12. Dimensions: 675×525×1150mm
Other asphalt laboratory instruments:
Introducing the Asphalt Wax Tester – an essential tool for asphalt and oil industry professionals. Designed with precision and efficiency in mind, this innovative tester accurately measures the wax content in asphalt, ensuring your materials meet the highest quality standards.
Asphalt is a critical component in road construction and maintenance, and understanding its properties is essential to achieving optimal performance. The Petroleum Asphalt Wax Tester simplifies the process of determining wax content, which significantly affects the viscosity, workability, and overall durability of asphalt mixes. With this tester, you can confidently assess the quality of asphalt to improve the performance and life of your projects.
The petroleum asphalt wax content tester uses advanced technology, has a user-friendly interface, and is quick and easy to operate. Its rugged design ensures its durability and is suitable for both laboratory and field applications. The tester provides results quickly, allowing you to make informed decisions immediately. Whether you are performing routine quality control or developing new asphalt formulations, this tester is a valuable tool for you.
The Asphalt Wax Tester is not only accurate and efficient, but also designed with safety in mind. It complies with industry standards, ensuring you can operate with confidence. The compact design makes it easy to transport and store, making it a practical choice for busy professionals.
Invest in a petroleum asphalt wax content tester today to enhance your asphalt testing capabilities. Its reliable performance and user-friendly features ensure that your asphalt products meet the stringent requirements of the industry, ultimately creating safer and more durable roads. Experience the excellent results that accurate testing can bring to your projects!
