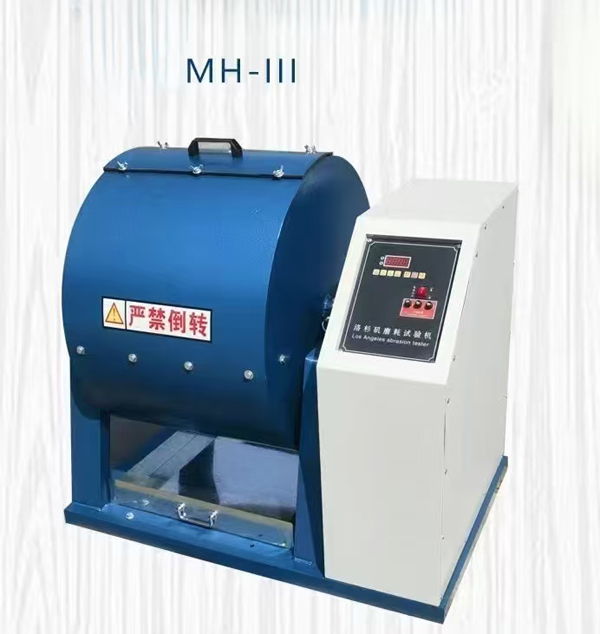

New Standard Los Angeles Abrasion Testing Machine
New Standard Los Angeles Abrasion Testing Machine
Model: MH – III
Product Introduction
1. Purpose: New Standard Los Angeles Abrasion Testing Machine is mainly used to determine the abrasion rate of stone materials.
2. Structure: This machine is mainly composed of components such as a cylinder, iron supports, a sealing cover, a bracket, a mandrel, a gearbox, an electric motor, and a counter.
3. This product complies with the JTG3432 – 2024 Test Procedures for Aggregates in Highway Engineering.
Product Parameters
Main Technical Parameters:
1. Inner diameter of the cylinder: 711mm, inner length: 508mm±5mm, wall thickness: 12.0mm±0.5mm
2. Opening width: 150mm±3mm, cover width: 190mm
3. Partition size: width 89mm±2mm, thickness 25mm±1mm
4. Rotation speed: 30 – 33r/min
5. Steel balls: φ44mm – φ48mm, 17 steel balls (can simultaneously meet the requirements of 4 groups of tests specified in the standard)
6. Counter: 4 – digit (automatic display, programmable)
Packing:
Introducing the new Standard Los Angeles Abrasion Tester – the ultimate solution for evaluating the durability and quality of aggregates in building materials. This advanced machine is designed with precision and innovation in mind, making it a must-have for engineers, quality control labs and construction professionals who demand reliable and accurate test results.
The Los Angeles Abrasion Tester is designed to assess the resistance of aggregates to wear and degradation, simulating the conditions they may encounter in real applications. The machine’s rugged construction and advanced technology ensure consistent performance and long service life, making it an ideal addition to any testing facility.
The new standard Los Angeles abrasion tester is equipped with a powerful motor and a high-capacity drum to accommodate various sizes of aggregates and provide diverse testing capabilities. The intuitive control panel features a user-friendly interface, allowing operators to easily set parameters and monitor the test process in real time. In addition, the machine is designed to minimize noise and vibration to ensure a safe and comfortable working environment.
Safety is a top priority and this machine has built-in safety features including an automatic shut-off mechanism and protective enclosure to ensure compliance with industry standards. The New Standard Los Angeles Abrasion Tester is easy to maintain with components that are easily removable, simplifying routine inspection and maintenance.
In industries where quality and reliability are critical, the New Standard Los Angeles Abrasion Tester stands out as a reliable tool for evaluating aggregate properties. Whether you are conducting research, quality assurance or compliance testing, this machine delivers reliable and accurate results. New Standard Los Angeles Abrasion Testers combine innovation and reliability to advance your testing capabilities and ensure the integrity of your materials.
