Manual Marshall Compactor
Manual Marshall Compactor
Manual Compactability
Used for compact Marshall Specimens manually for sample preparation.
Product Description

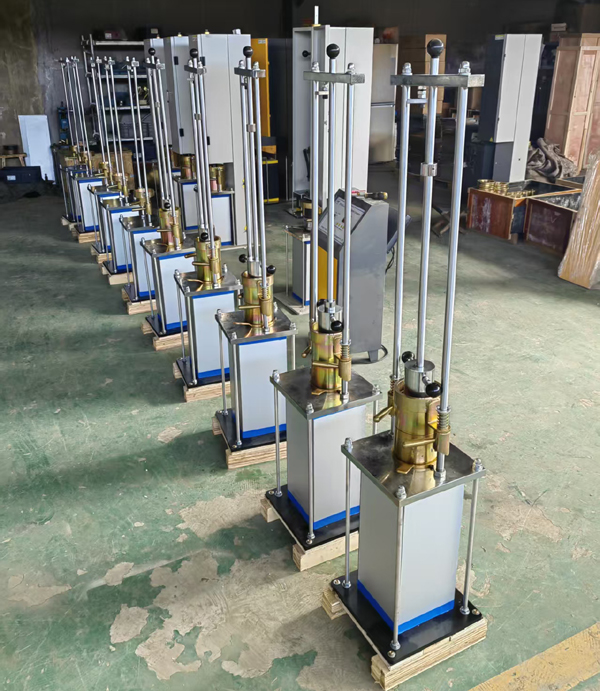

Marshall Compactor, Manual, Single 4in Mold
Product Specification / Description
Marshall Compactor, Manual, 4in Mold enables compaction of an individual 4in Marshall asphalt sample into a stationary mold using a manually operated drop hammer.
Manual Marshall Compactor Used for compact Marshall Specimens manually for sample preparation.
Technical Specifications :
| Standard | BS 598-107, ASTM D1559, AASHTO T245 |
| Dimension | 370 (L) x 300 (W) x 2000 (H) mm |
| Height of Hammer Drop | 457 mm |
| Weight of Hammer | 4.535 kg |
| Approx. Weight | 66 kg |
Set Consists Of:
| Compaction Hammer | 1no. |
| Compaction Pedestal with Wooden Mounting Base | 1set |
| Hammer Guide Rod with Plunger & Holder | 1no. |
| Guide Rod Holder | 1no. |
| Manual Instruction | 1 Copy |
Optional Accessories：
| Marshall Compaction Mould |
| Marshall Compaction Mould (Collar) |
| Marshall Compaction Mould (Body) |
| Marshall Compaction Mould (Base Plate) |
| Marshall Sample Extruder |
| Filter Paper (11 cm Diameter) |
