Magnetic Stirrer For Laboratory
- Product Description

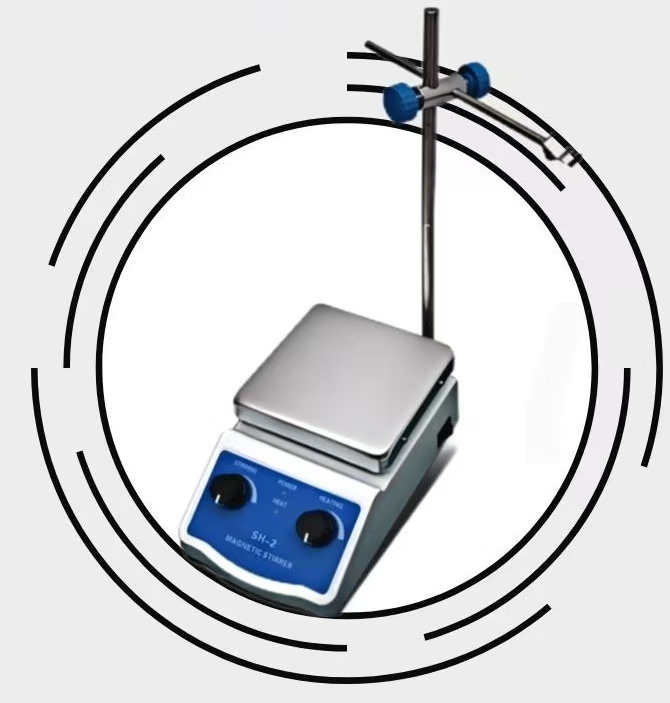

laboratory magnetic stirrer hotplate
Uses:Hot Plate Magnetic Stirrer is used when liquid heating is needed in industry, agriculture, health and medicine, scientific research and college labs etc.Characteristics:
1. Die-casting and stretching roof cover; fabrication processed exterior to prevent leaking.2. Heating and stirring can proceed simultaneously.3. Enclosed heating plate with characteristics of flame protection, fast warm-up and durability.4. Heating power and stirring speed is stepless adjusted.
Main Technical Parameters:
| Model | SH-2 | SH-3 |
| voltage(V) | 110V/60Hz | 110V/60Hz |
| Heating power(KW) | 180 | 500 |
| Stirring speed (r/min) | 100-2000 | 100-2000 |
| Heating-plate size (mm) | 120×120 | 170×170 |
| Max temperature(plate surface) | 380℃ | 380℃ |
| Max stirring capacity (ml) | 2000 | 5000 |
| Exterior dimensions W×D×H(mm) | 200×120×90 | 250×180×120 |
| Packaging dimension(mm) | 265×185×190 | 310×220×205 |
| Net weight (kg) | 2 | 3 |
Delivery time: 10 days
Reference Photos:
Max Heating Temperature: 380°C
Stirring Speed: 0~1600rpm; Max Stirring Volume: 1L
Free stirring bar and supporting clamp
Aluminium panel (12cm x 12cm)
Provide heating and stirring simultaneously.
1 year warranty.
This device is widely used for heating and stirring of liquids in school and research laboratories, industries and mining, food processing, brewing, biochemistry, agriculture, etc.
This Magnetic Stirrer with Hotplate is widely used for the simultaneous stirring and heating of liquids. The stirring speed and temperature are regulated from the front panel with separate dials. Indicator lights inform users at a glance if either control is active. The totally enclosed, 5″ (125 mm) x 5″ (125 mm), cast aluminum heating surface resists chemical spills.
Features & Specs
Detachable 300 mm (12″) support bar with a clamp for thermometer or pH probe
Detachable power cord measuring 1.5 m (5.5 ft) long
Stirring capacity is up to 500 ml (16.9 oz) with a strong vortex
110 V or 220V
180 W
Temperature max: 380°C (716°F)
RPM 100-2000
Instructions
