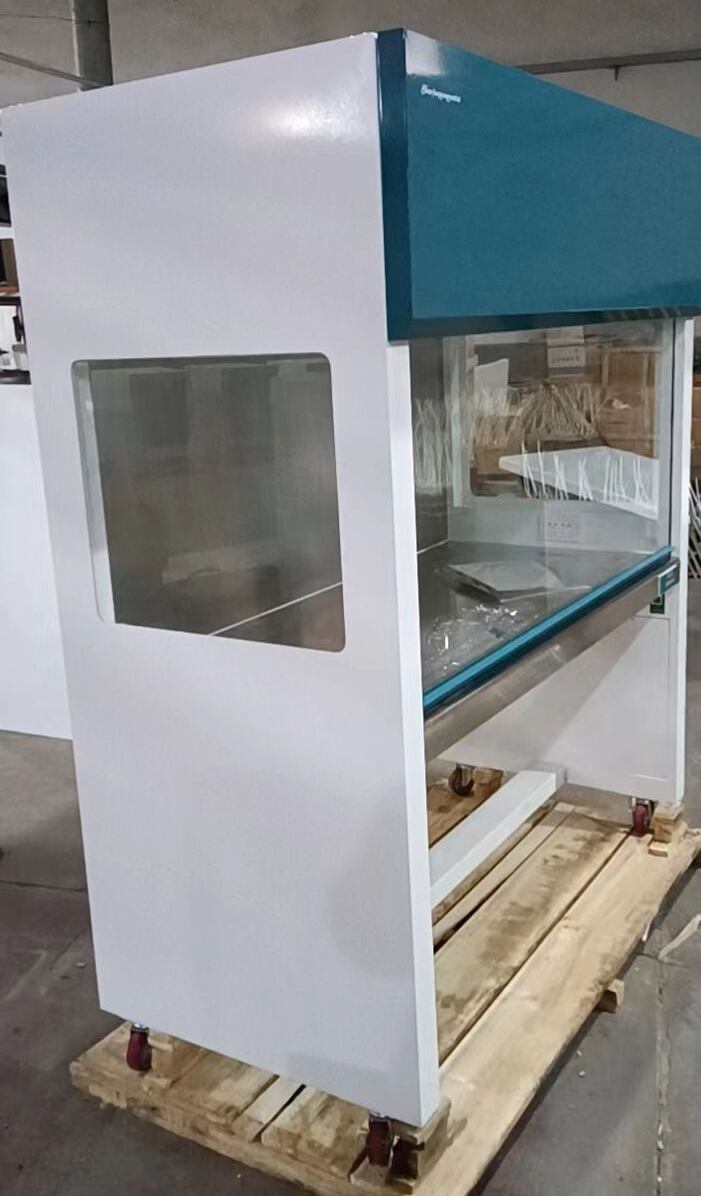

Laboratory vertical and horizontal air supply class 100 laminar flow cabinet
- Product Description
Laboratory vertical and horizontal air supply class 100 laminar flow cabinet
We supply all kinds of lab clean benchs,we hope customers can accept us, we will try ourselves best to serve our customers.Equipped with spring up/down movable door in the front and back of work bench, flexible and convenient to locate, air insulation design to avoid cross pollution inside and outside, Contact switch adjusts voltage to keep wind speed in working area in ideal state all the time. Operate with LED panel .The material of the work area is 304 stainless steel. lab clean bench good quality , good price.
1.The vertical closed bench can effectively prevent outer gas from entering and preventing peculiar smell in operating area from damaging human body.2.Single-person single-side vertical air clean bench/class100 laminar flow cabinet adopts wind volume adjustable fan system, light-touch type switch and dual-speed voltage regulation device to keep wind speed in working area in ideal state.3.The personalized design considers user’s demand completely. It adopts spring type sliding door so that the door can be oriented on needed position, thus it is more convenient to operate.
| ParameterModel | SW-CJ-1D | SW-CJ-2D |
| Clean grade | 100 Grade@≥0.5μm (209E) | |
| Number of bacteria | ≤0.5 per utensil.hour (¢ <90mm> utensil) | |
| Average wind speed | 0.3~<0.6m>/s (adjustable) | |
| noise | ≤62dB | |
| Half peak value of shaking of shaking | ≤5μm | |
| Illumination | ≥300Lx | |
| Power supply | AC single-phase 220V/50H | |
| Max. power consumption | 0.4KW | 0.8KW |
| Weight | 85kg | 150 kg |
| Dimension of working area | 700×500×500(W×D×H)mm | 1300×570×1600(W×D×H)mm |
| Overall dimension | 850×570×1550(W×D×H)mm | 1150×500×500((W×D×H)mm |
| Specification and number of high effective filter | 760*610*50* | 610*610*50* |
| Specification and number of light from firefly/ ultraviolet light | 20W* | 30W* |
| Suitable number | Single | Double |
Laminar Flow Cabinets: Ensuring a Clean and Controlled Environment
Laminar air flow cabinets are essential equipment in laboratories and cleanroom environments, designed to provide a sterile workspace for a variety of applications. This specialized cabinet utilizes a continuous stream of filtered air to create a contamination-free zone, making it ideal for tasks that require a high degree of cleanliness, such as microbiological research, pharmaceutical production, and electronics manufacturing.
The main function of a laminar flow cabinet is to protect the samples being processed and the operator from potential contaminants. The cabinet works by drawing air through a high-efficiency particulate air (HEPA) filter, which removes 99.97% of airborne particles that are 0.3 microns or larger. The filtered air then flows unidirectionally across the work surface in either a horizontal or vertical direction. This laminar flow creates a barrier that prevents contaminants from entering the work area, ensuring that the environment remains sterile.
There are two main types of laminar air flow cabinets: Class I and Class II. Class I cabinets provide protection for the operator and the environment, but not the sample. In contrast, Class II cabinets are designed to protect both the operator and the sample, making them the preferred choice for most laboratory applications. These cabinets are often equipped with additional features, such as UV lights for disinfection and adjustable airflow settings to suit different tasks.
In summary, laminar flow cabinets are an essential tool for maintaining sterile conditions in a variety of scientific and industrial settings. By providing a contamination-free, controlled environment, these cabinets play a vital role in ensuring the integrity of sensitive experiments and products. Investing in a high-quality laminar flow cabinet is essential for any facility that prioritizes clean and safe operations.
