Lab Asphalt Moisture Content Tester

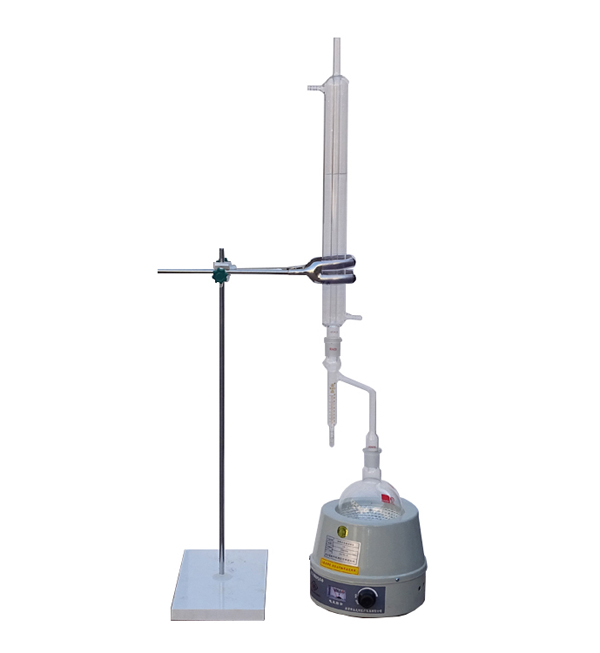

Asphalt Moisture Content Tester

This testing instrument Asphalt Moisture Content Tester is suitable for determining the water content of petroleum asphalt, coal tar pitch or emulsified asphalt, etc. The water content of asphalt refers to the quantity of water contained in the asphalt sample, expressed as a mass percentage.
Technical Parameters:

(1) Glass flask; made of hard glass, round bottom, short neck, diameter 100mm, capacity 500mL.
(2) Moisture receiver; shaped as shown in the figure, with 10 equal divisions for a capacity of less than 0.3 mL, 7 equal divisions for a capacity between 0.3 and 1 mL, and each division representing 0.2 mL for a capacity between 1 and 10 mL.
(3) Condenser tube; straight or spherical, inner tube diameter 10mm, total length 350-400mm, end cut at an angle, outer tube diameter 40-50mm, length 250-300mm, water inlet and outlet ports close to both ends.
(4) Iron frame; equipped with iron rings and iron clips.
(5) Heater; electric heating mantle.
(6) Chassis

Laboratory Asphalt Moisture Content Tester: Ensuring the Quality of Asphalt Production

In the field of civil engineering and construction, the quality of the materials used is crucial to the life and durability of the infrastructure. A key factor in asphalt production is the moisture content, which significantly affects the performance of the asphalt mixture. The laboratory asphalt moisture content tester was born for this purpose and is an essential tool for engineers and technicians.

The Laboratory Asphalt Moisture Tester is designed to accurately measure the moisture content in asphalt samples. The device uses a dielectric measurement principle to provide fast and reliable results, which is essential for quality control in asphalt production. By determining the moisture content, engineers can ensure that the asphalt mix meets the specified standards and prevent problems such as stripping that can cause premature failure of the pavement.

One of the great benefits of using a laboratory asphalt moisture content tester is its efficiency. Traditional moisture measurement methods are time-consuming and labor-intensive, and results may not be available immediately. In contrast, modern testers enable rapid assessments and support real-time adjustments during the mixing process. This not only saves time, but also improves the overall quality of the asphalt product.

In addition, laboratory asphalt moisture content testers are easy to operate and often feature digital displays and intuitive interfaces, simplifying the testing process. This ease of use ensures that even personnel with limited experience can operate the equipment effectively, ensuring consistent quality across projects.

In summary, laboratory asphalt moisture testers are an indispensable tool for the asphalt industry. They provide accurate moisture content measurements, helping to ensure that asphalt mixes meet specifications, ultimately improving the durability and safety of roads and other infrastructure. As technology continues to advance, the importance of such testing equipment will only increase, further highlighting the importance of quality assurance of construction materials.
