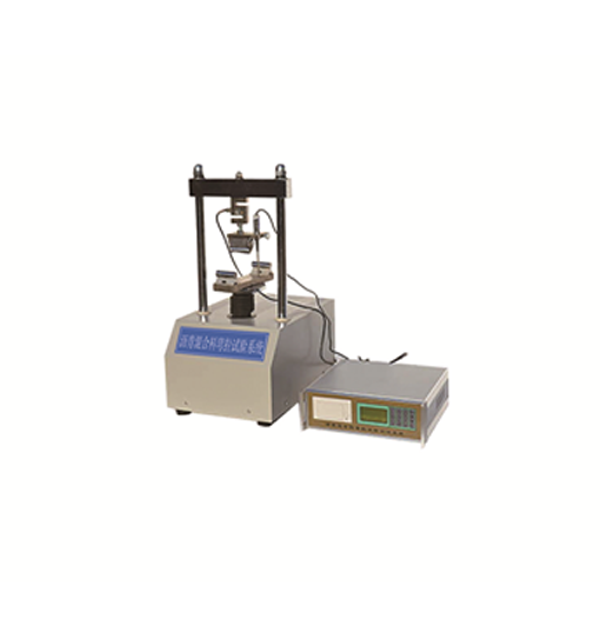

Lab Asphalt Mixture Bending Tester

Lab Asphalt Mixture Bending Tester

I. Overview

The asphalt mixture bending and tensile test system is developed by our company in accordance with the “Test Regulations for Asphalt and Asphalt Mixture in Highway Engineering”. It is driven by a stepping motor reducer and equipped with corresponding special fixtures. This system is composed of the main unit and corresponding fixtures, X-Y acquisition part, data processing, printer, etc. After the specimens are clamped, the entire test process can be automated by using automatic control. It is the first multi-functional asphalt mixture bending and tensile testing equipment in China.

Ii. Main Technical Parameters

1. Pressure measurement range: 0-5000N

2 Flow value measurement range: 0-15.00(0.01mm)

3 Working voltage: 220V±10%, 50HZ

4. Operating temperature: Operating guarantee temperature: 5-35℃.

5. Loading speed: 50mm/min – 1mm/min
