Integrated Steel Bar Position Tester
Integrated Steel Bar Position Tester

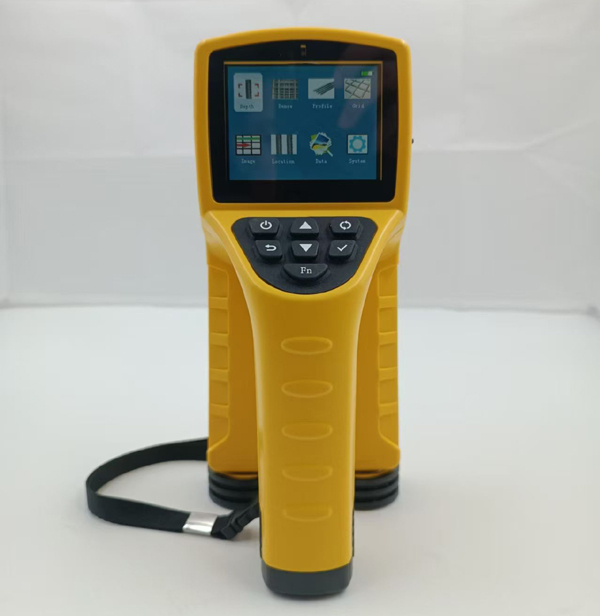

integrated steel bar position measuring instrument is used to measure the diameter, position and distribution of steel bars in existing reinforced concrete or new reinforced concrete and the thickness of concrete protective layer of steel bars. It can accurately “see through” the position of steel bars in real time, and can test dense steel bars.
l Specification
Technical specification for steel bar detection in concrete JGJ/T152-2019
Code for acceptance of construction quality of concrete structure engineering GB 50204-2015
Technical standard for inspection of building structures GB/T50344-2004
Code for design of concrete structures (2015 edition) GB50010-2010
Technical specification for detecting the thickness and diameter of reinforced protective layer by electromagnetic induction method DB11/T365-2016
Technical standard for on-site inspection of concrete structures (GBT/50784-2013)
Specification for Metrology and Calibration of Thickness Gauge of Reinforced Protective Layer and Floor Thickness Gauge JJF1224-2009
l Performance
You can “see through” the position of reinforcing bars, and the positioning of reinforcing bars is accurate. The instrument adopts multi-coil structure, which can “see through” the position of steel bars, thus realizing real-time and accurate positioning of steel bars.
Excellent dense steel bar testing function. The instrument has specially designed the dense steel bar testing module, and users can judge the distribution of steel bars in the dense steel bar area according to the waveform of the signal. In the dense steel bar testing, it has reached the leading level in the industry.
A variety of testing methods. The instrument has a variety of testing methods, such as thickness testing, grid scanning, profile scanning, image scanning and JGJ testing, to meet the different testing requirements of users.

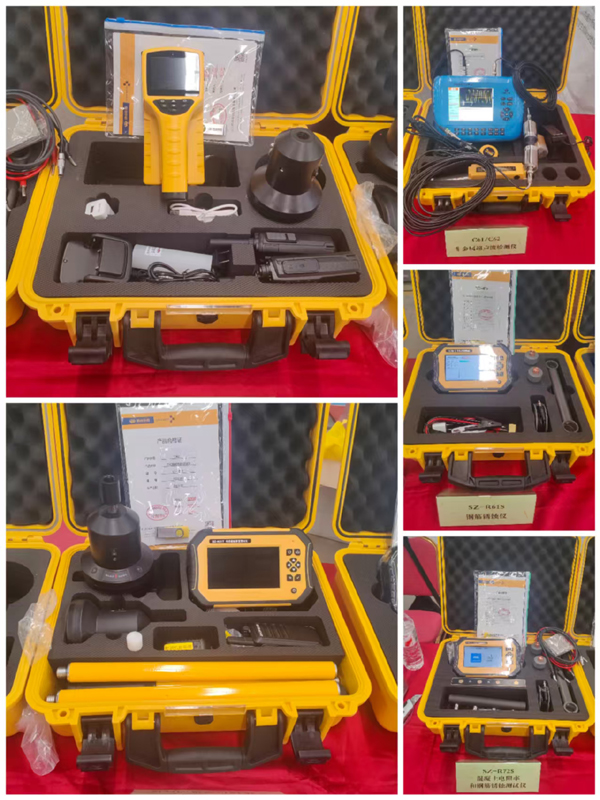

Other Products Non-destructive testing products：
2.8-inch large color LCD display. The large color screen display and beautiful interface design make the user’s operation simple and convenient, and the brightness of the LCD screen can be adjusted, which is convenient for users to use in different light.
Large capacity SD card storage, U disk data transmission mode. The instrument has a large capacity of 8G, and users can save data as they wish without worrying about the space capacity. It can be used as a mobile USB flash drive on the computer to copy data directly without other complicated operations, which is convenient and quick.
Integrated design, compact size. One of the smallest integrated steel bar position measuring instruments in China, with the length, width and height of 205×85×90mm, can be easily tested to the corners.
The center of gravity of the instrument is stable. When the instrument is designed, the user’s usage habits are fully considered, and the battery is located in the handle of the instrument, so that the instrument will not be top-heavy.
