High and Low Temperature Fully Automatic Asphalt Penetration Tester

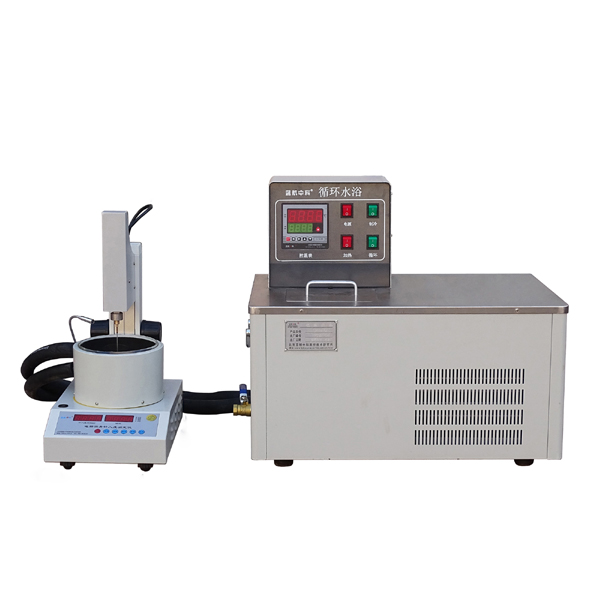

High and low temperature fully automatic asphalt penetration tester

Overview

This instrument is designed and manufactured in accordance with the requirements stipulated in T 0604-2011 “Test for Penetration of Bitumen” of the “Test Procedures for Bitumen and Bituminous Mixtures for Highway Engineering” (JTG E20-2011), a traffic industry standard of the People’s Republic of China. It is suitable for testing the penetration of road petroleum asphalt, modified asphalt, and the residue after evaporation of liquid petroleum asphalt or emulsified asphalt.

Comply with JJG (Transportation) 067-2015 “Method for Measuring the Penetration of Asphalt”, GB4509–84 “Method for Measuring the Penetration of Petroleum Asphalt”, and TO60–93 “Test for Penetration of Asphalt”

I. Main Technical Features

1. The lifting mechanism is innovatively designed, and the fine-tuning structure allows for easy and smooth up and down adjustment.
2. It is equipped with a dedicated low-temperature circulating constant-temperature water bath to provide circulating constant-temperature water to the glass container on the working platform of the penetration tester, creating a pre-set and constant low-temperature environment required for the test sample.
4. It adopts a novel digital display, with stable data, reliable operation, and accurate measurement results.
2. The advanced digital displacement sensor ensures accurate data measurement.
3. LED cold light source illumination ensures no error in water temperature.

The most distinctive feature of this instrument is:
It is equipped with a low-temperature constant-temperature water bath to meet the needs of low-temperature testing; advanced mechanical design for convenient lifting and adjustment; digital temperature controller for accurate temperature control; high-precision digital penetration tester for reliable measurement results.

II. Main Technical Indicators
1. Parameters of constant temperature water bath
(1) Power supply: AC (20 ± 10%) V; 50 Hz.
(2) Bath volume: 5.5 L.
(3) Temperature range: (5.0 – 100.0) °C.
(4) Temperature accuracy: ±0.1 °C.
(5) Water circulation volume: 5 L/min.
(6) Pump head: 1 m.
(7) Total power consumption: no more than 1800 W.
(8) Overall dimensions: 420 mm × 380 mm × 900 mm (length × width × height).
2. Penetration Tester Parameters
(1) Penetration Time Control Device: Can be selected from 5 seconds, 10 seconds, 30 seconds, and 60 seconds respectively, with a time error of less than ±0.1 seconds.
(2) Penetration Depth Device: Equipped with a high-precision digital display, it is convenient, fast, and intuitive to use, and can be started at any position.
(3) Resolution: 0.01 mm.
(4) Penetration Accuracy: ±1 penetration degree.
(5) Maximum Penetration Depth: 500 penetration degrees.
(6) Standard Needle: 50 mm, 2.5 g ± 0.05 g (basic configuration).
(7) Penetration Tester Dimensions: 35 x 26 x 49 cm (length x width x height)
The external dimensions of the low-temperature water bath are 65x42x68 cm (length x width x height).
Total weight: 50 kg
