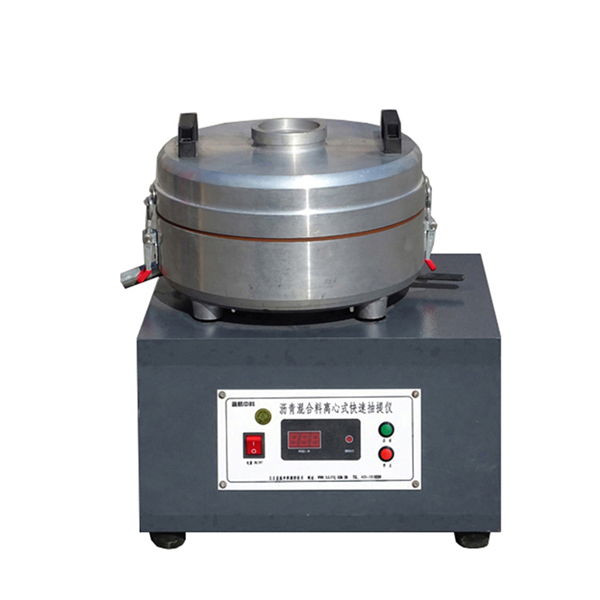

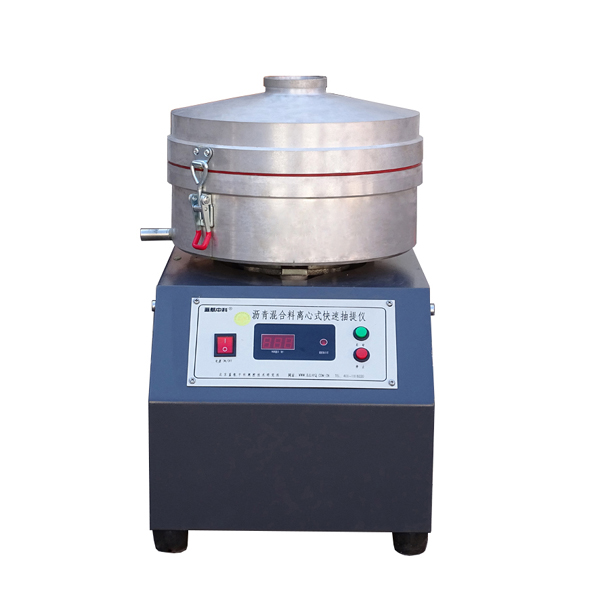

Centrifugal Rapid Extraction Instrument For Asphalt Mixture
Centrifugal Rapid Extraction Instrument For Asphalt Mixture
This instrument is designed and manufactured in accordance with the requirements stipulated in T 0722-1993 “Test for Asphalt Content in Asphalt Mixture (Centrifugal Separation Method)” of the “Test Procedures for Bitumen and Bituminous Mixture in Highway Engineering” (JTJ 052-2000) of the People’s Republic of China. It uses the centrifugal separation method to determine the asphalt content (or oil-to-stone ratio) in asphalt mixtures made with viscous petroleum asphalt. It is suitable for on-site rapid detection by construction supervisors, asphalt mixture manufacturers and construction units in road engineering.
Main features:
This instrument adopts stepless speed regulation and features fast separation speed, simple detection process, energy conservation, stable performance, light weight, small size and low noise.
Main technical parameters:
1.Capacity of the material bowl: 1500g – 3000g
2.Power: 250 watts
3. Voltage: 220V
4. Rotational speed: 1300 – 3000 r/min
Diameter of the pot: 280mm
6. Overall weight: 100 kg; Dimensions: 600 mm (length) × 440 mm (width) × 620 mm (height)
Asphalt mixture centrifugal rapid extraction instrument
The Asphalt Extractor is a ground-breaking tool designed to improve the efficiency and accuracy of asphalt testing. As demand for high-quality road construction materials continues to grow, this innovative instrument plays a vital role in ensuring asphalt mixes meet industry standards.
The core of the centrifugal extractor is to use centrifugal force to separate the asphalt binder from the aggregate in the asphalt mixture. This process is much faster than traditional extraction methods, which usually require lengthy procedures and a lot of labor. By simplifying the extraction process, the instrument not only saves time, but also reduces the possibility of human error, resulting in more reliable results.
One of the main benefits of the Centrifugal Rapid Extractor is its ability to accurately measure the asphalt content of a mixture. Accurate determination of asphalt binder content is critical to evaluating the performance characteristics of asphalt mixtures, such as durability, workability, and resistance to deformation. With this instrument, engineers and technicians can quickly obtain the data they need to make informed decisions about material selection and mixture design.
Furthermore, the Centrifugal Rapid Extractor is designed with user-friendliness in mind. Its intuitive interface and automated features make it easy for both experienced professionals and those new to bitumen testing to operate. In addition, the compact design of the instrument ensures that it can be used in a variety of laboratory environments without taking up too much space.
In summary, the Asphalt Mixture Centrifugal Rapid Extractor represents a significant advancement in asphalt testing technology. The instrument combines speed, accuracy, and ease of use, and is expected to become an essential tool for engineers and researchers working to improve the quality and performance of asphalt mixtures used in road construction.
