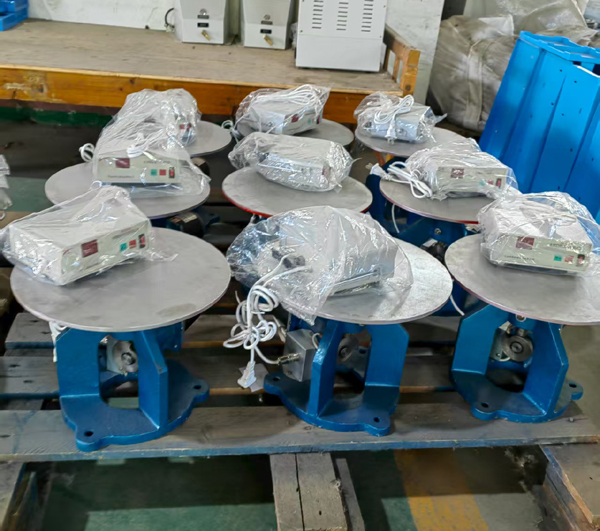

Cement Mortar Consistency Test Flow Table Testing Machine
- Product Description
Cement Mortar Consistency Test Flow Table Testing Machine,Cement Vibration Meter
Flow tables are used for determining consistency (flow) and for preparing mortars of standard consistency for testing. Flow is determined as a percent increase in the diameter of a conically molded mortar.Motorized Flow Tables also determine consistency in the preparation of mortars for testing, but with controlled rates that comply with ASTM and AASHTO standards.
Cement Mortar Flow Table, Manual Flow Table Test Apparatus
Standard: EN 459-2, EN 1015-3, ASTM C230
Used to determining the consistency of mortar & building line. Offering ASTM & EN standard, motorized. A specimen contained in a cone mould is placed on a metal surface which is then raised & dropped from a known height after releasing the specimen from the mould.
II. Technical parameters
| Weight of vibrating part | 4.35k g±0.15 k g |
| Drop height | 10mm ± 0.2 mm |
| Vibrating frequency | 1Hz |
| Working cycle | 25 |
| Net weigt | ≈20kg |
