Automatic Soils Compactor

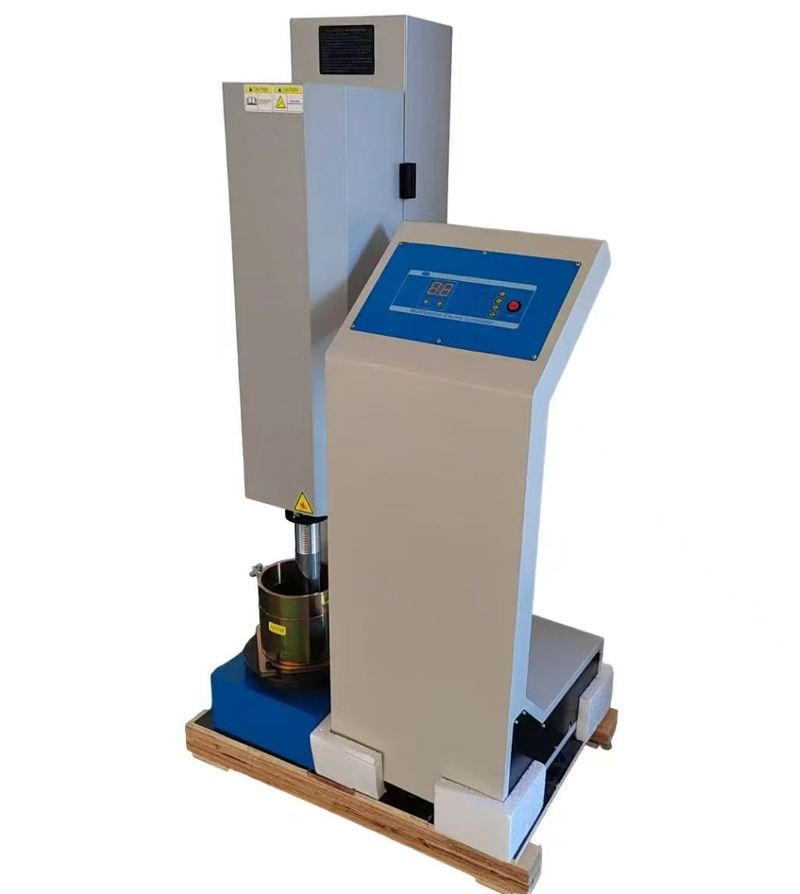

Proctor CBR Soil Compactors, Automatic
Proctor CBR (California Bearing Ratio) Soil Compactor is used for proctor compaction tests on soil samples, allowing for determining maximum dry density and optimum moisture content in geotechnical engineering according to standardized procedures. This process involves compacting soil samples in a standard mold under controlled conditions. This helps evaluate the mechanical strength of natural ground, subgrades, and base courses for pavement design, measuring the load-bearing capacity of soil when compacted to specific density and moisture content.
Newly upgraded model by using ECO-SMARTZ system for energy saving and consistency operation. Solid and compact design allows uniform and correct compaction of Proctor and CBR samples.
Features of Proctor CBR Soil Compactor
Controlled compaction of soil samples in a standard mold under controlled conditions, ensuring consistent results.
Perform Proctor compaction tests on soil samples to determine the maximum dry density and optimum moisture content.
Single version mechanism for most international standard
Pre-set blow system ensures even compaction
Solid state controls reliability & ease of maintenance
Separated control box unit protects against vibration damage
Technical Specifications
Model Number 5025 X / 005A
Rammer Drop Rate 25 to 32 blows/min
Adjustable Rammer Weight 2.5 kg / 4.5 kg
Adjustable Drop Height 12″ or 18″
Product Dimension (mm) 490 (L) x 360 (W) x 1370 (H)
Packing Dimension (mm) 590 (L) x 460 (W) x 1570 (H)
Approx. Product Weight 150 kg
Approx. Packing W 180 kg
Power 220~240 V, 250 W, 8 A, 1Ph, 50/60 Hz
Unit Consist Of:
Model Number Parts Description
5025 X / 005 – P 001 Digimatic Control Unit
5025 X / 005 – P 003 Ø2″ Lifting Rammer c/w Counter Weight
Optional Accessories
Model Number Accessories Description
5025 X / 005 – A 001 Soundproof Security Cabinet
5001 X Series All Types of CBR Moulds
5011 X Series All Types of Proctor Moulds
Standard
ASTM D558: This standard covers the determination of the moisture content of soil and rock by drying the material in an oven. It provides procedures for accurately measuring the moisture content, which is essential for understanding the behavior of soil and for compaction testing.
ASTM D698: This standard outlines the test method for determining the moisture-density relations of soils using a standardized compaction apparatus. It helps determine the maximum dry density and optimum moisture content of soils, crucial parameters for engineering applications such as road construction and foundation design.
AASHTO T99: This standard specifies the method for determining the moisture-density relations of soils using a standardized compaction apparatus. Similar to ASTM D698, it aims to determine the maximum dry density and optimum moisture content of soils for engineering purposes.
AASHTO T134: This standard covers the test method for the moisture content of soils by using calcium carbide gas pressure moisture testers. It provides procedures for rapid and accurate determination of the moisture content, which is vital for assessing soil properties and compaction characteristics.
AASHTO T180: This standard outlines the test method for determining the moisture-density relations of soils using a standardized compaction apparatus. Like ASTM D698 and AASHTO T99, it focuses on determining the maximum dry density and optimum moisture content of soils to ensure proper compaction and stability in construction projects.
Test Procedure of Proctor CBR Soil Compactors
Sample Preparation:
Collect representative soil samples from the site.
Air-dry the samples and break up any aggregates.
Sieve the soil to remove any large particles or debris.
Determination of Moisture Content:
Take a portion of the prepared soil sample and determine its initial moisture content using an appropriate method, such as ASTM D558 or AASHTO T134.
Compaction Test:
Set up the Proctor/CBR Soil Compactor according to the manufacturer’s instructions and calibrate it if necessary.
Place a specified amount of soil into a standard compaction mold (usually a cylindrical mold with known dimensions).
Determine the compaction effort required based on the type of Proctor test being conducted (Standard Proctor or Modified Proctor).
Compact the soil in layers by applying a specified number of blows from the compaction hammer. The blows are evenly distributed over the surface of each layer.
Measure and record the height of each compacted layer.
Repeat the compaction process for additional soil samples at varying moisture contents.
Determination of Dry Density:
After compacting all the samples, carefully extract them from the molds.
Determine the dry weight of each compacted sample by oven-drying them to remove all moisture (ASTM D558 or AASHTO T134).
Calculate the dry density (bulk density) of each sample using the known volume of the mold and the dry weight of the soil.
Plotting the Compaction Curve:
Plot a graph of dry density versus moisture content for the tested soil samples.
Identify the maximum dry density and the corresponding optimum moisture content from the curve.
Interpretation:
Evaluate the results to determine the suitability of the soil for engineering applications, such as road construction or foundation design.
The maximum dry density and optimum moisture content provide crucial information for achieving the desired level of compaction in the field.

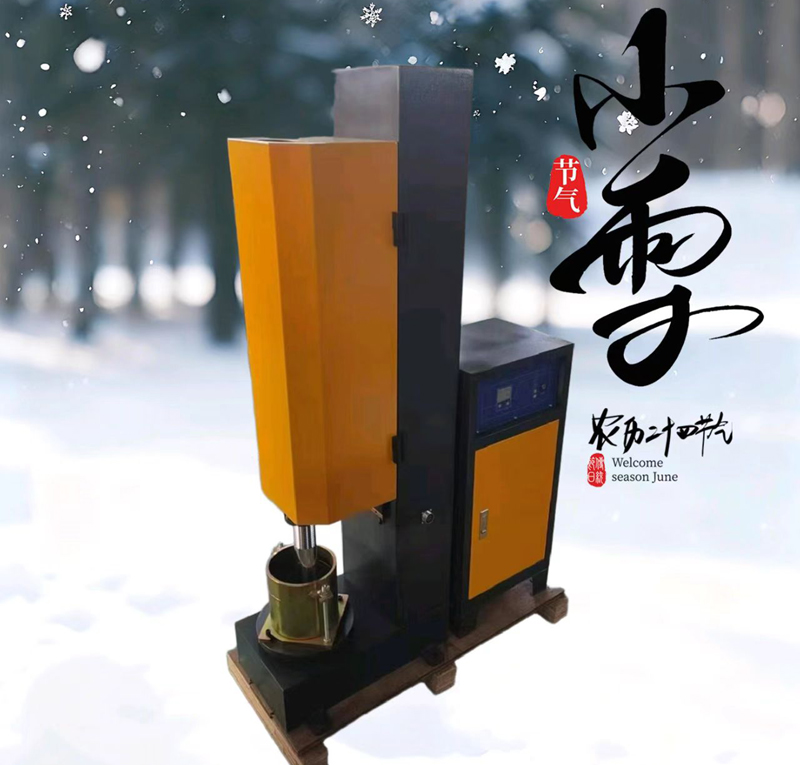

custom-made model:
Introducing our Automatic Soil Compactor – the ideal solution for efficient soil compaction in building and landscaping projects. This advanced compactor utilizes cutting-edge technology and a user-friendly design to deliver superior performance while minimizing operator fatigue.
This automatic soil compactor features a powerful engine that delivers exceptional compaction force, ensuring the highest standards of soil compaction. Its advanced automatic control system intelligently adjusts compaction speed and force based on soil type and moisture content, guaranteeing optimal results every time. This means you can easily achieve perfectly compacted surfaces without guesswork, saving time and effort on-site.
This automatic soil compactor is durable, constructed with a robust frame and high-quality materials to withstand intensive use. Its compact design allows for easy operation even in confined spaces, making it ideal for large construction sites and small landscaping projects. The ergonomic handle ensures a comfortable grip, while the intuitive interface makes it easy for operators of all skill levels to use.
The automatic soil compactor prioritizes safety. It is equipped with advanced safety features, including an automatic shutdown system that activates in emergencies, ensuring peace of mind while you work. Furthermore, low-vibration technology reduces operator fatigue, allowing you to work comfortably for extended periods.
Whether you’re a professional contractor or a DIY enthusiast, an automatic soil compactor is the perfect addition to your equipment portfolio. Experience the efficiency and quality improvements this innovative compaction solution brings to take your projects to the next level. Invest in an automatic soil compactor today and ensure every job is done perfectly!
