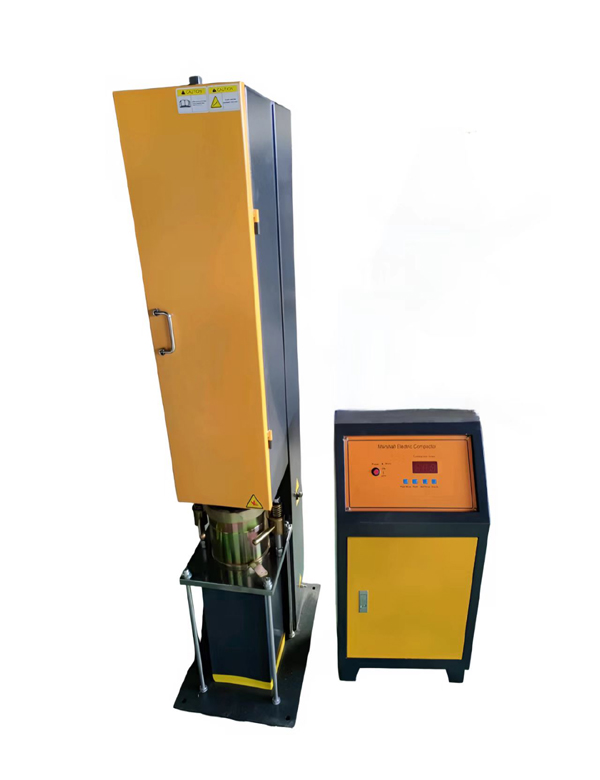

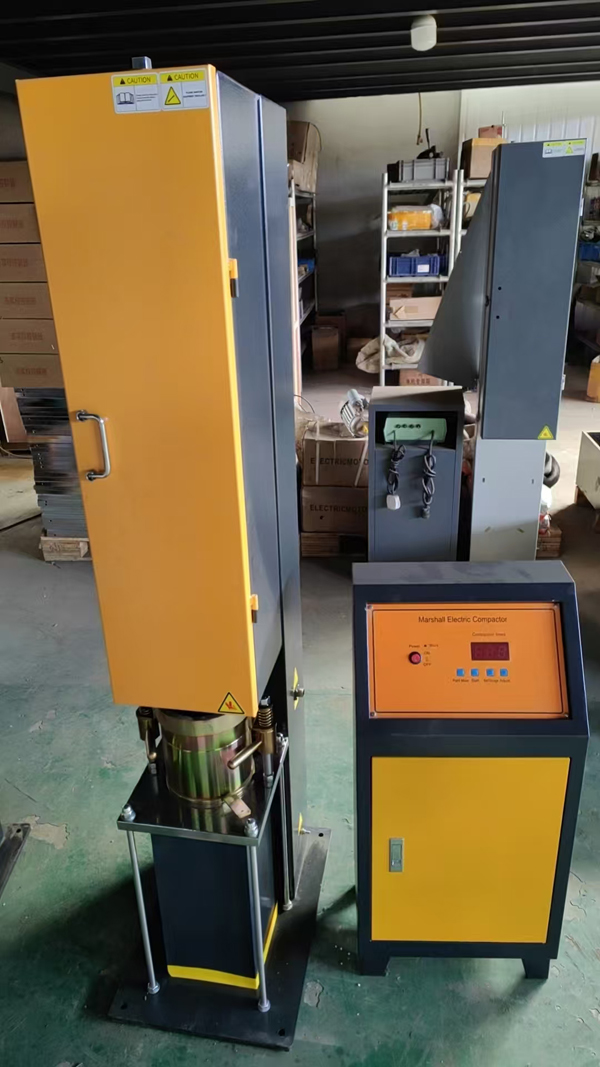

Automatic impact (Marshall) compactor
Automatic impact (Marshall) compactor
Main feature
1. Can realize automatic counting，Automatic compaction，Automatic shutdown.
2. With hanging hammer seat and manual handle，Can easily lift the hammer.
3. Semi-automatic die pressing device，It is more convenient to pick and place the mold.
4. Integrated hammer head，Won’t fall off，Won’t break or crack.
5. Small size Marshall test mode and large Marshall test mode can in common use .
|
Drop distance
|
457.2mm
|
|
Compaction speed
|
60±5 times/minute
|
|
Compaction preset number
|
0－999times
|
|
Hammer weight
|
10210g±10g/ 4536±9g
|
|
Test mode cylinder diameter
|
152.4mm/101.6mm
|
|
Dimensions
|
650X650X1800mm
|
|
Weight
|
200kgs
|
|
Ambient temperature
|
5～40℃
|
|
Environment humidity
|
≦85﹪
|
