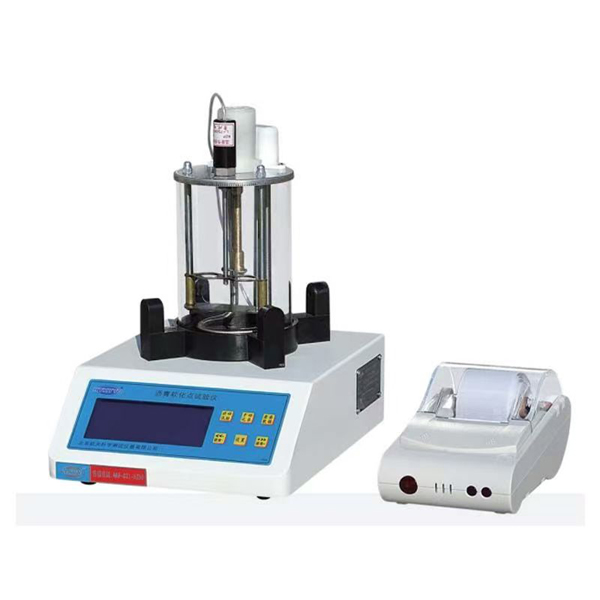

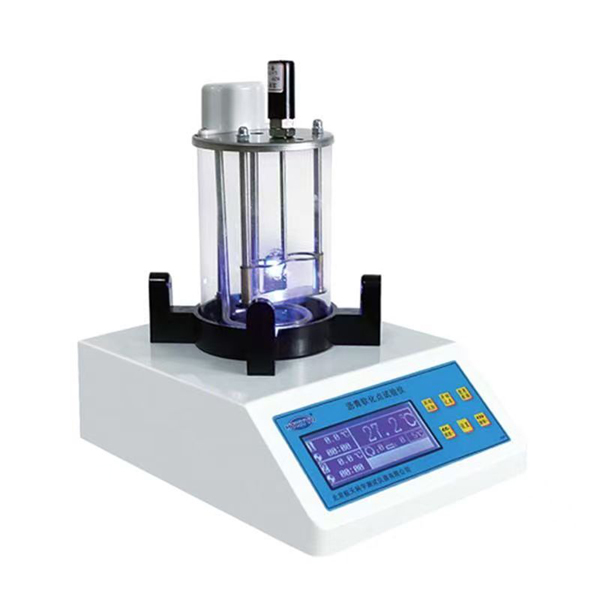

Asphalt Softening Point Tester Lab
Asphalt Softening Point Tester
◆ Main Features
1. Equipped with a 7-inch full-color touch screen, providing a user-friendly interface and quick operation.
2. The high-temperature resistant beaker stand has been redesigned to enhance the reliability of the detection components under high-temperature conditions.
3. The highly reliable optical photoelectric detection system, combined with our patented algorithm, effectively reduces the influence of ambient light and is not affected by interference from water bubbles.
4. Built-in electronically controlled variable-speed magnetic stirrer (F-type).
5. The software system supports both Chinese and English, and can be switched through system settings.
6. Features real-time data display, heating curve display, and manual or automatic recording.
7. Capable of storing up to 999 sets of test data, with built-in time tag management, allowing for deletion or printing.
8. Equipped with networking capabilities for two communication protocols, and can be paired with our PC version test software for direct data upload (only supported in some provinces) or obtaining test data through a database serial port.
SYD – 2806F:
◆ Main Technical Parameters
1. Temperature measurement accuracy: 0.1°C
2. Temperature measurement range: -5 – 125°C
3. Heating rate: 5.0 ± 0.4°C/min after three minutes (water medium)
4. Time accuracy: 1 second
5. Timing range: 0 – 99 minutes 99 seconds
6. Submergence distance: 25.4mm
7. Test channels: 2 channels
8. Power supply: AC220V ± 10%
9. Maximum power: 800W
10. Overall dimensions: 320 × 210 × 315mm
11. Total weight: 9kg
12. Packaging dimensions: 380 × 240 × 380mm
SYD – 2806H:
◆ Main Technical Parameters
1. Temperature measurement accuracy: 0.1°C
2. Temperature measurement range: -5 – 180°C
3. Heating rate: 5.0 ± 0.4°C/min (water medium); 5.0 ± 0.5°C/min (glycerol medium) after three minutes
4. Time accuracy: 1 second
5. Timing range: 0 – 99 minutes 99 seconds
6. Submergence distance: 25.4mm
7. Test channels: 2 channels
8. Power supply: AC220V ± 10%
9. Maximum power: 800W
10. Overall dimensions: 320×210×315mm
11. Total weight: 9kg
12. Packaging dimensions: 380×240×350mm
Asphalt instrument products：
Introducing the Laboratory Asphalt Softening Point Tester – an essential tool for asphalt and construction industry professionals. Designed to provide accurate and reliable measurements, this advanced device is an essential tool for determining the softening point of asphalt and other asphalt materials, helping to ensure quality control and compliance with industry standards.
The laboratory asphalt softening point tester uses the ring and ball method, which is a widely accepted technique for evaluating the thermal properties of asphalt. The user-friendly interface, intuitive controls and smooth operation of the tester make it easy for both experienced professionals and novices to use. The device is ruggedly constructed to ensure long-lasting durability even in harsh laboratory environments.
This laboratory asphalt softening point tester is equipped with advanced temperature control technology to ensure precise temperature regulation for consistent and repeatable test results. The clear digital display provides real-time readings, allowing users to easily monitor the softening process. In addition, the tester is designed with safety in mind and integrates multiple functions to minimize the risk of accidents during operation.
Whether you are engaged in road construction, pavement design or quality assurance, the laboratory asphalt softening point tester is an indispensable tool for your laboratory. It not only improves the accuracy of your testing procedures, but also simplifies your workflow, saving you valuable time and resources.
Invest in a laboratory asphalt softening point tester today and take your asphalt testing capabilities to the next level. Combining accuracy, reliability and ease of use, this tester is the ideal solution for ensuring the quality and performance of your asphalt materials. Experience how advanced technology can revolutionize your testing processes and achieve excellent results in every measurement.
