Asphalt Mixture Automatic Mixer
Asphalt Mixture Category

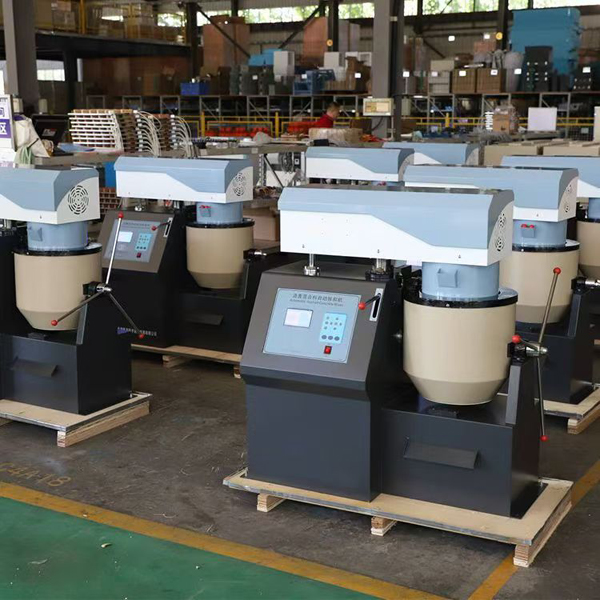

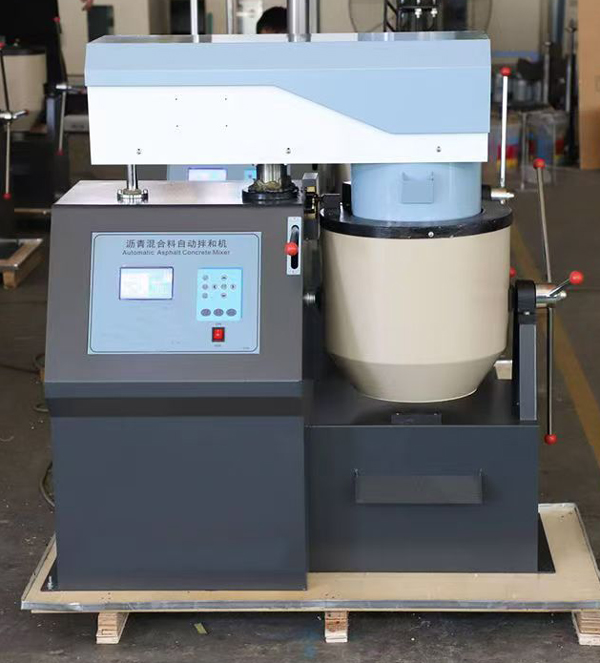

Asphalt Mixture Automatic Mixer
Model: BH – 20
Main Features
1. Designed with high – speed single – chip microcomputer and CMOS large – scale integrated circuit. It has a reliable limit mechanism, and uses silicon – controlled rectifier for stepless voltage regulation and temperature control. It is equipped with a PID temperature – control algorithm with fuzzy logic, and the software is optimized according to the heat – transfer characteristics of the mixing pot, enabling accurate temperature control.
2. The expert PID adjustment algorithm enables the temperature – control accuracy to reach ±3°C. After 40 minutes of temperature control activation, the temperature – control fluctuation is less than ±1.5°C.
3. It has a unique settable temperature – compensation function, which avoids the situation where the temperature measurement point fails to reflect the actual temperature, resulting in a lower pot temperature.
4. Program – controlled stirring. After pressing the “Start” button, the lifting structure of the instrument runs automatically without the need for manual lifting or lowering.
5. Oil – bath heating ensures uniform temperature, accurate temperature control, and a high safety factor.
6. The ball – screw lifting component features low noise and smooth operation. (For BH – 10/20 models)
7. It is equipped with a 240×128 high – resolution liquid – crystal display (LCD). The full – LCD display supports both Chinese and English interfaces, which is user – friendly and intuitive. The human – oriented interface design and operation experience clearly display all test statuses and information, and the LCD prompts the operation steps.
8. It has a built – in expert PID self – tuning function, which can automatically optimize the temperature – control parameters to the best state.
Main Technical Parameters
1. Mixing capacity: Optional 10 L or 20 L
2. Heating pot temperature range: Room temperature – 250°C (Arbitrary setting available)
3. Temperature – control accuracy: ±3°C, Resolution: 0.3°C
4. Mixing time: 1 – 999 s (Arbitrary setting available)
5. Mixing paddle rotation speed: Revolution 45 ± 5 r/min; Rotation 75 ± 5 r/min
6. Operating temperature: – 10°C – 50°C
7. Operating relative humidity: Not more than 80%
8. Power supply voltage: AC220V ± 10%
9. Total power: 3600W (maximum)
10. Overall dimensions: 1120×550×1130 mm
11. Net weight of instrument: 198 kg
12. Packaging dimensions: 1220×580×1220 mm
13. Gross weight of instrument: 231 kg
Automatic asphalt mixer: a revolution in road construction
In an ever-changing construction industry, the Asphalt Mixer is a game-changer in the asphalt industry. This innovative equipment is designed to simplify the asphalt mixing process and ensure a consistent, high-quality product that meets the stringent requirements of modern road construction.
The automatic asphalt mixer is precise and efficient, significantly reducing the time and manpower required for traditional mixing methods. By automating the mixing process, it can minimize human errors and improve the uniformity of the asphalt mixture. This is crucial because the quality of asphalt directly affects the durability and service life of the road.
A key benefit of the automatic asphalt mixer is its ability to handle a wide range of asphalt mixture types. Whether it is hot mix asphalt, warm mix asphalt or cold mix asphalt, the equipment can adapt to different formulations and be suitable for a variety of projects. In addition, the automatic mixer is equipped with advanced technology that allows real-time monitoring and adjustments to ensure that the mix meets specific project requirements.
In addition, the use of automatic asphalt mixers contributes to the sustainability of the construction industry. By optimizing the mixing process, it can reduce waste and energy consumption, which is in line with the industry’s growing emphasis on environmental protection. This is not only good for protecting the earth, but also helps companies save costs, achieving a win-win situation.
All in all, automatic asphalt mixers are an essential tool for modern road construction. Their efficiency, precision, and adaptability make them a valuable asset for contractors looking to elevate their operations. As the construction industry continues to embrace automation and innovation, automatic asphalt mixers will play a key role in shaping the future of road construction.
