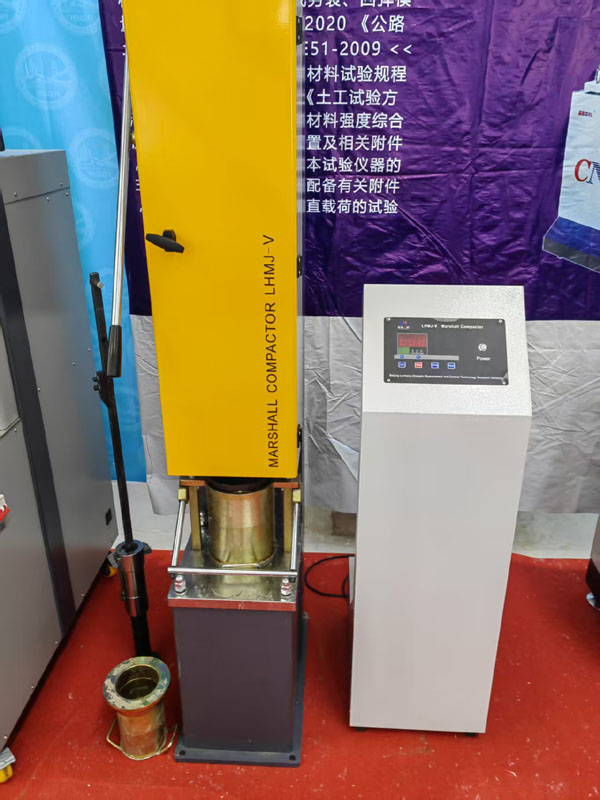

Asphalt Marschel specimen compaction instrument Marshall Compactor
Asphalt Marschel specimen compaction instrument
This instrument is used to prepare asphalt mixture specimens for the Marshall test. During the working process, it automatically counts and stops automatically. It has an attractive appearance, advanced structure, stable and reliable performance, and is convenient to use.
1. Drop distance: 457±1.5mm
2. Compaction speed: 60±5 times per minute
3. Pre-set number of clicks: 0-999 times
4. Hammer weight: 10210g±10g, 4536±9g
5. Diameter of the test mold cylinder: 152.4mm, 101.6mm
6. Voltage: 380V/50HZ
7. Power: 350W
Compactor set that facilitates hand compaction of Marshall specimens. Set features ASTM-compliant oak pedestal with hammer support rod, which holds hammer in perpendicular alignment to base during compaction. Also features a mold holder, which keeps the mold securely positioned during compaction.
The Marshall Compaction method is used to select asphalt binder content at a desired density that satisfies minimum stability and range of flow values. Typically found in construction materials laboratories, the compactor is used as a tool to determine optimum asphalt content for maximum strength and minimum deformation. Pine offers two Marshall Compactor models to produce 4″ or 6″ asphalt specimens for hot mix design and performance testing in compliance with AASHTO T 245 and ATM D6926.Marshall compactor is used for the preparation specimens for Marshall stability testing in compliance to BS 598 standard.The digital controlled marshall electric compactor is suitable for preparing bituminous mix specimens (dia. 101.6mm x 63.5mm) used in marshall stability testing. The trip mechanism is designed to make the hammer fall at the same distance for every stroke. With some features of digital control, compact times to be preset freely, auto counting and easy to operate etc.Compaction mould need to be ordered separately.
Asphalt Marshall Sample Compactor: Marshall Compactor
Asphalt Marshall Compactors, commonly known as Marshall Compactors, play a key role in the field of asphalt testing and quality control. This essential equipment is designed to evaluate the characteristics of asphalt mixes to ensure they meet durability and performance standards.
The Marshall Compactor works by applying a certain amount of energy to compact an asphalt sample. This process is critical in determining the optimum asphalt content and stability of the mix. By simulating the conditions asphalt may encounter in real-world applications, the Marshall Compactor is able to provide valuable insight into the material’s behavior under load.
One of the key features of the Asphalt Marshall Compactor is its ability to provide consistent and repeatable test results. The compactor typically uses a 4-inch diameter mold into which the asphalt mix is placed and compacted a specified number of times using a weighted hammer. This method enables engineers and technicians to evaluate the density and stability of asphalt, which are key factors in pavement performance.
Furthermore, Marshall compactors are not limited to laboratory environments but are widely used in field applications. Their portability and ease of use make them ideal for field testing, allowing for instant analysis and adjustment of asphalt mixes as needed.
All in all, the Asphalt Marshall Compactor (also known as a Marshall Compactor) is an indispensable tool for the asphalt industry. It provides accurate and reliable data about the asphalt mix, ensuring that roads and pavements last longer, ultimately contributing to safer, more durable infrastructure. As technology continues to advance, such instruments will become increasingly important in maintaining high standards of asphalt quality.
