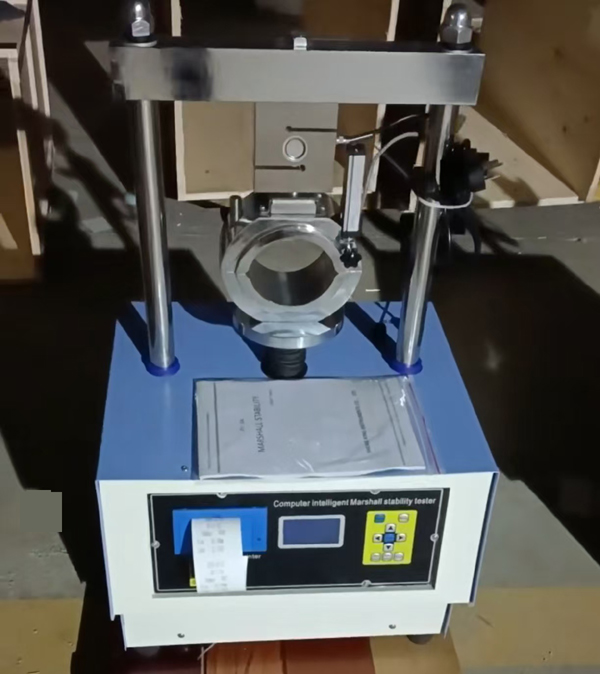

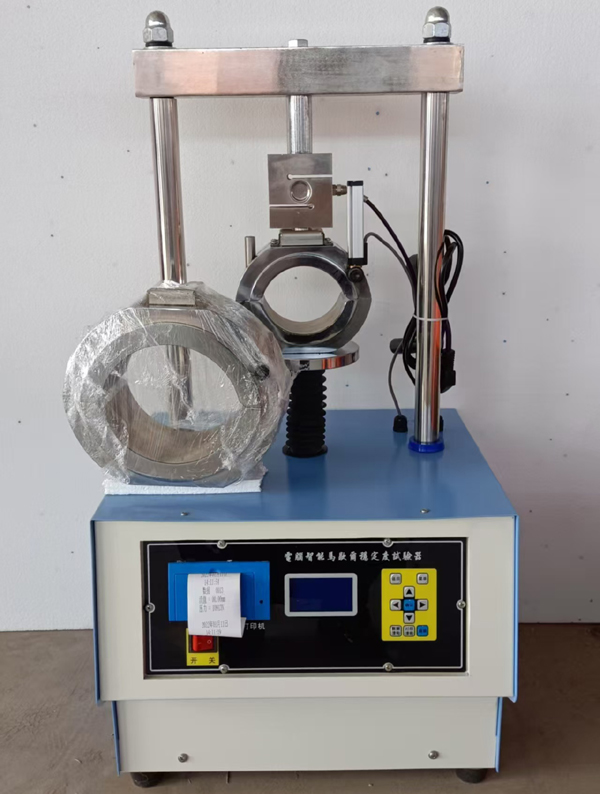

Asphalt Computer-Controlled Marschel Stability Tester
Asphalt Computer-Controlled Marschel Stability Tester
The electric Marshall compaction instrument is a special equipment for the molding of test pieces in the asphalt mixture Marshall test. It is suitable for the Marshall test (T0702-2000) standard of asphalt mixture. The instrument consists of two parts: mechanical transmission and control instrument.The mechanical transmission mechanism is motor, speed reducer and chain drive. The motor drives the speed reducer and the reducer to drive the chain to rotate. The stop block on the chain drives the standard hammer to move upward along the guide rod during the movement. When the heavy hammer hits the wedge The heavy hammer and the block on the chain are disengaged, and the heavy hammer is free to fall along the guide rod to hit the test piece.
1.1 This product is applicable to the Marshall Stability Test of asphalt mixture (T0709-2011) and the Marshall Test of asphalt pavement core samples (T0710-2011) as stipulated in the “Test Procedures for Asphalt Mixture in Highway Engineering” (JTG E20-2011).
1.2 This instrument is suitable for Marshall stability test and water-soaked Marshall stability test, which are used for the mix proportion design of asphalt mixture or the quality inspection of asphalt pavement construction. The water-soaked Marshall stability test (or vacuum saturated Marshall stability test as required) is used to examine the resistance to stripping of asphalt mixture when exposed to water, and to verify the feasibility of the mix proportion design through testing its water stability.
1.3 This method is applicable to standard Marshall specimens and large Marshall specimens formed in accordance with the procedures specified in T 0702 of this regulation.
Ⅱ.Main technical parameters
1.1 Marshall specimens shall be formed by the compaction method in accordance with T 0702. The dimensions of standard Marshall specimens shall comply with the requirements of a diameter of 101.6mm ± 0.2mm and a height of 63.5mm ± 1.3mm. For large Marshall specimens, the dimensions shall meet the requirements of a diameter of 152.4mm ± 0.2mm and a height of 95.3mm ± 2.5mm. The number of specimens in a group shall not be less than 4.
1.2 Measure the diameter and height of the specimens: Use a caliper to measure the diameter at the middle of the specimen. Use a Marshall specimen height gauge or a caliper to measure the height at four symmetrical directions 10mm away from the edge of the specimen, accurate to 0.1mm, and take the average value as the height of the specimen. If the height of the specimen does not meet the requirements of 63.5mm ± 1.3mm or 95.3mm ± 2.5mm, or if the height difference between the two sides is greater than 2mm, the specimen shall be discarded.
1.3 Determine the density of the specimens in accordance with the methods specified in this procedure, and calculate the volume indicators such as void ratio, asphalt volume percentage, asphalt saturation, and mineral aggregate void ratio.
1. Operating conditions: Ambient temperature 0℃ – 60℃, Relative humidity < 85%
2. Mainframe technical specifications:
Vertical ascending speed of the test instrument tray: 50 ± 5 mm/min
Maximum movement distance of the test instrument tray: 70 mm
3. Main technical specifications:
Force measurement device accuracy: ±10 N
Flow value measurement device accuracy: 1%
Maximum range: ⑴ Force value: 50.00 kN ⑵ 0 – 25.00 mm
4. Load sensor specifications:
Working range: 0 – 50 kN
Linearity: 0.5%
5. Displacement sensor specifications:
Working range: 0 – 25 mm (maximum range 0 – 50 mm)
Resolution: 0.01 mm
Linearity: 0.3%
Auxiliary Equipment:
1) ZKCF-B type constant temperature water bath: Accurate temperature control to 1℃, with a depth of no less than 150mm.
2) Vacuum water-filled container: including vacuum pump and vacuum dryer.
3) ZK101-2A type forced convection drying oven.
4) 5kg/0.1g balance
5) Thermometer: Graduation value 1℃.
6) 150mm caliper.
7) Others: Cotton yarn, butter.
Introducing the Asphalt Computerized Marshall Stability Tester – the ultimate solution for accurate and efficient testing of asphalt mixtures. Designed for laboratories and quality control agencies, this advanced equipment is designed to meet the rigorous demands of modern asphalt testing, ensuring your material meets the highest industry standards.
The Marschel Stability Tester is equipped with advanced computer control technology for seamless operation and accurate data acquisition. Its user-friendly interface simplifies the testing process, allowing technicians to easily set parameters, monitor progress, and analyze results in real time. With its rugged construction and high-quality components, the tester ensures reliability and durability, making it a valuable addition to any testing facility.
One of the standout features of the Asphalt Computer Controlled Marshall Stability Tester is its ability to perform stability tests on asphalt mixes with unparalleled accuracy. The tester measures the resistance of asphalt samples to deformation under load, providing insight into the material’s performance characteristics. This information is vital for engineers and contractors to ensure the durability and service life of their asphalt mixes is optimized.
In addition, the Marschel Stability Tester is designed with safety and efficiency in mind. Its automated features reduce the risk of human error, while its compact design allows it to be easily integrated into existing laboratory equipment. The device also supports multiple test standards, making it versatile enough to meet different project needs.
All in all, the Asphalt Computer Controlled Marshall Stability Tester is an indispensable tool for anyone involved in asphalt testing and quality assurance. With its cutting-edge technology, ease of use, and reliable performance, this tester will help you achieve excellent results and maintain the highest standards in your asphalt projects. Invest in a Marshall Stability Tester today to enhance your lab’s testing capabilities and help shape the future of asphalt testing!
