Asphalt Bitumen Ductility Testing Machine Tester
Asphalt Bitumen Ductility Testing Machine Tester
Low temperature asphalt ductility testing machine
Low Temperature Bitumen Ductility Testing Machine
Standards: ASTM.D113
Low Temperature Digital Asphalt Elongation Tester Bitumen Ductility Testing Machine Temperature-Controlled Ductility Testing Machine

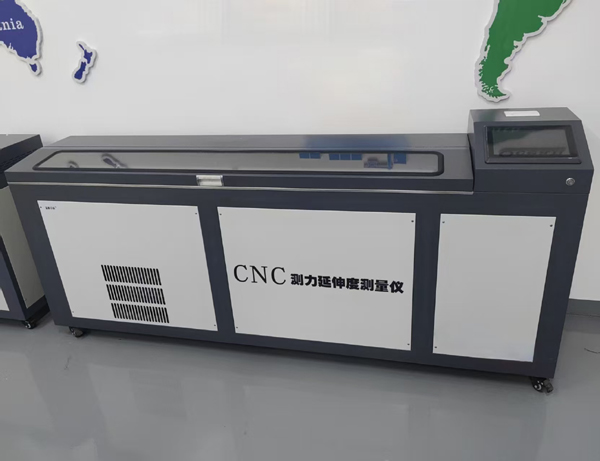

The Ductility testing machine is a specialized equipment to test the ductility of pavement petroleum asphalt, polymer modified asphalt, and the residue of distilled liquid petroleum asphalt or asphalt emulsion. The normal test temperature is 25℃, 15 ℃, 10℃, 5℃, the stretch rate is 5±0.25cm/min. when in low temperature, the stretch rate can be 1±0.5cm/min.
Technical Parameter:
1.Extended effective length: 1500mm
2.Elongation rate: 5 cm / min, 1 mm / min
3.Temperature control range: 5-40 ℃
3.Temperature control display accuracy: ± 0.01 ℃ (high precision, latest temperature standard)
4.Working power: 6000W
5.Working voltage: AC220 V, 50 Hz
Main features:
1.Large color touch screen display, man-machine integrated operation, all data can be queried
2.The extension drive adopts the combination of linear guide rail and ball screw, which has no swing and delay during extension
3.Manual locking and releasing device is adopted, which is easy to operate and has no key fault
4.The tank circulation adopts three-stage circulation system to ensure that the water temperature is displayed between 0.01 ℃
5.Equipped with LED water tank lighting system
6.30 groups of test data can be queried at will
7.All stainless steel worktable, whole body electrostatic spray
Asphalt Ductility Tester Temperature-Controlled Ductility Testing Machine is suitable for measuring the elongation of various specifications and models of asphalt and liquid asphalt residues after distillation and asphalt emulsion evaporation residues. It is widely used in production, road construction and scientific research departments, and is more suitable for the test of modified asphalt.
Bitumen Asphalt Laboratory Instruments：
ductility testing machine is used to determine the ductility of bituminous materials in a briquette mould by measuring the breaking elongation at a specific speed and temperature. The ductility of bitumen is expressed as the distance in cms
